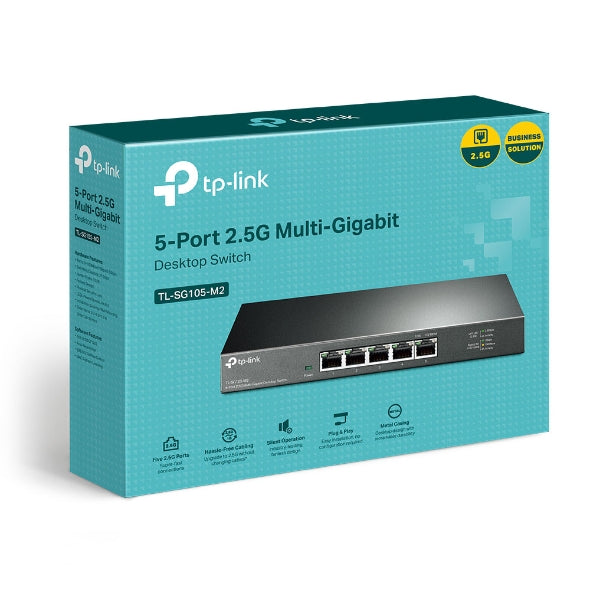

TP-Link TL-SG105-M2 5-Port 2.5G Desktop Switch | Up To 25G Switching Capacity | Connects 2.5G NAS/Server

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 5-Port
• Listed network standard or speed: 2.5G
• Product SKU: NWTL-SG105-M2

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-SG105-M2 5-Port 2.5G Desktop Switch

• — Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices and provide up to 25 Gbps of switching capacity.

• — Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.

• — Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,

• — Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.**

• — Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business.

• — Plug and Play. Allows for easy deployment without the need for a technician.

• — Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

HARDWARE FEATURES

Standards and Protocols — IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz

Interface — 5× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity — Fanless

External Power Supply — External Power Adapter (Output: 12 VDC / 1 A)

LED Indicator — • System Power: 1

• Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port

Dimensions ( W x D x H ) — 8.2×4.9×1.0 in (209×126×26 mm)

Max Power Consumption — 12.11 W

Max Heat Dissipation — 41.32 BTU/h

PERFORMANCE

Switching Capacity — 25 Gbps

Packet Forwarding Rate — 18.6 Mpps

MAC Address Table — 16 K

Packet Buffer Memory — 1.5 Mb

Jumbo Frame — 10 KB

SOFTWARE FEATURES

Advanced Features — • 802.3X Flow Control

• 802.1p/DSCP QoS

Transfer Method — Store and Forward

OTHERS

Certification — CE, FCC ,RoHS

Package Contents — • 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2

• Power Adapter

• Installation Guide

• Rubber Feet

Environment — • Operating Temperature: 0–40 °C (32–104 °F)

• Storage Temperature: -40–70 °C (-40–158 °F)

• Operating Humidity: 10–90% RH non-c
