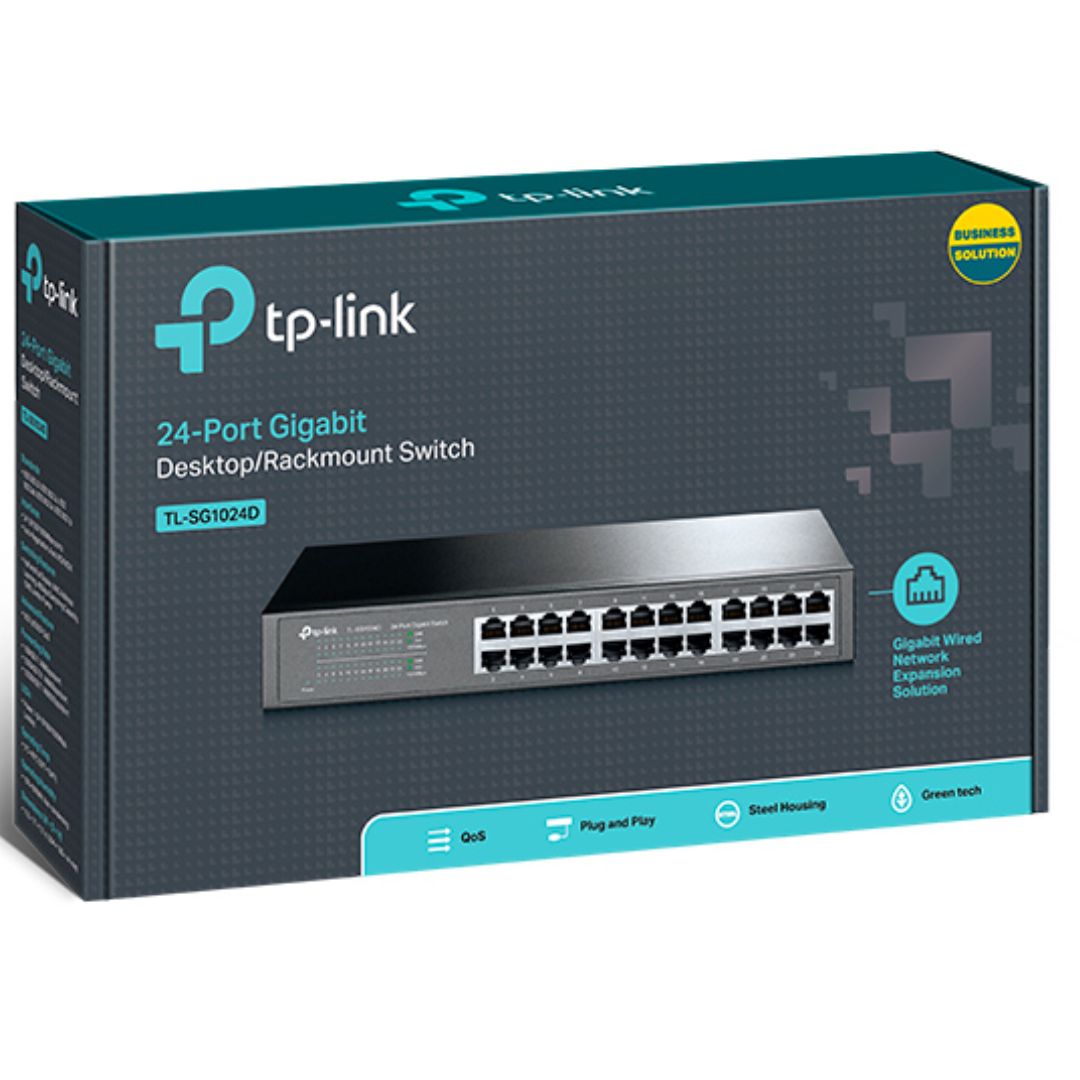

TP-Link TL-SG1024D 24-Port Gigabit Desktop/Rackmount Unmanaged Switch energy-efficient Supports MAC Plug play 48Gbps Switching Capacity

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 24-Port
• Listed network standard or speed: Gigabit
• Product SKU: NWTL-SG1024D

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-SG1024D 24-Port Gigabit Desktop/Rackmount Switch 24 10/100/1000Mbps ports Innovative energy-efficient technology saves power consumption Supports MAC address self-learning

• Auto MDI/MDIX and Auto negotiation Plug play design HARDWARE FEATURES Standards and Protocols IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3
• 4
• 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5
• 5e or above cable (maximum 100m) Fan Quantity Fanless Physical Security Lock No Power Supply 100-240VAC
• 50/60Hz Power Consumption Maximum: 13.1W (220V/50Hz) Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm) Mounting Rack Mountable Max Power Consumption 13.62W(220V/50Hz) Max Heat Dissipation 46.44BTU/h PERFORMANCE Switching Capacity 48Gbps Packet Forwarding Rate 35.7Mpps MAC Address Table 8K Jumbo Frame 10KB Green Technology Yes Transfer Method Store-and-Forward
