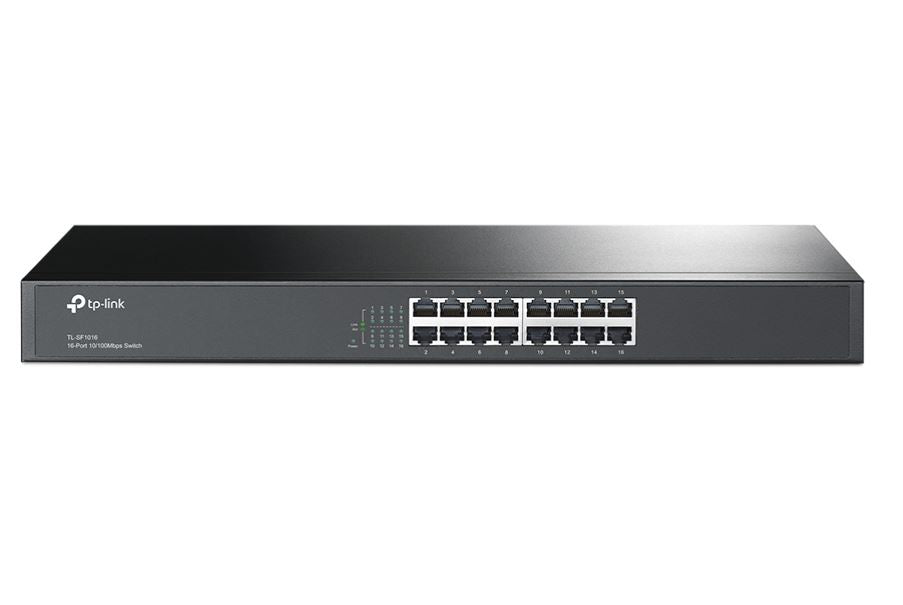

TP-Link TL-SF1016 16-port 10/100M Switch, 16 10/100M RJ45 ports, 1U 19-inch rack-mountable steel case

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 16-port
• 16 10/100M RJ45 ports
• 1U 19-inch rack-mountable steel case
• Product SKU: NWTL-SF1016

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-SF1016 16-Port 10/100Mbps Rackmount Switch MAC MDI/MDIX Steel Case

16 10/100Mbps RJ45 ports

Innovative energy-efficient technology saves power up to 75%

Supports MAC address self-learning and auto MDI/MDIX

Standard 19-inch rack-mountable steel case

What This Product Does

The 16-Port 10/100Mbps Rackmount Switch TL-SF1016 provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network.

All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play.

Moreover, with the innovative energy-efficient technology, the TL-SF1016 can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

HARDWARE FEATURES

Standards and Protocols — IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Interface — 16 10/100Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media — 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity — Fanless

Power Supply — 100-240VAC, 50/60Hz

Power Consumption — Maximum: 2.23W (220V/50Hz)

Dimensions ( W x D x H ) — 17.3*7.1*1.7 in. (440*180*44 mm)

PERFORMANCE

Switching Capacity — 3.2Gbps

Packet Forwarding Rate — 2.38Mpps

MAC Address Table — 8K

Buffer Memory — 2Mb

Green Technology — Innovative energy-efficient technology saves power up to 70%

Transfer Method — Store-and-Forward

OTHERS

Certification — FCC, CE, RoHS

Package Contents — 16-Port 10/100Mbps Rackmount Switch

Power Cord

Installation Guide

Rackmount Kit

Rubber Feet

Environment — Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~70℃ (-40℉~158℉);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing
