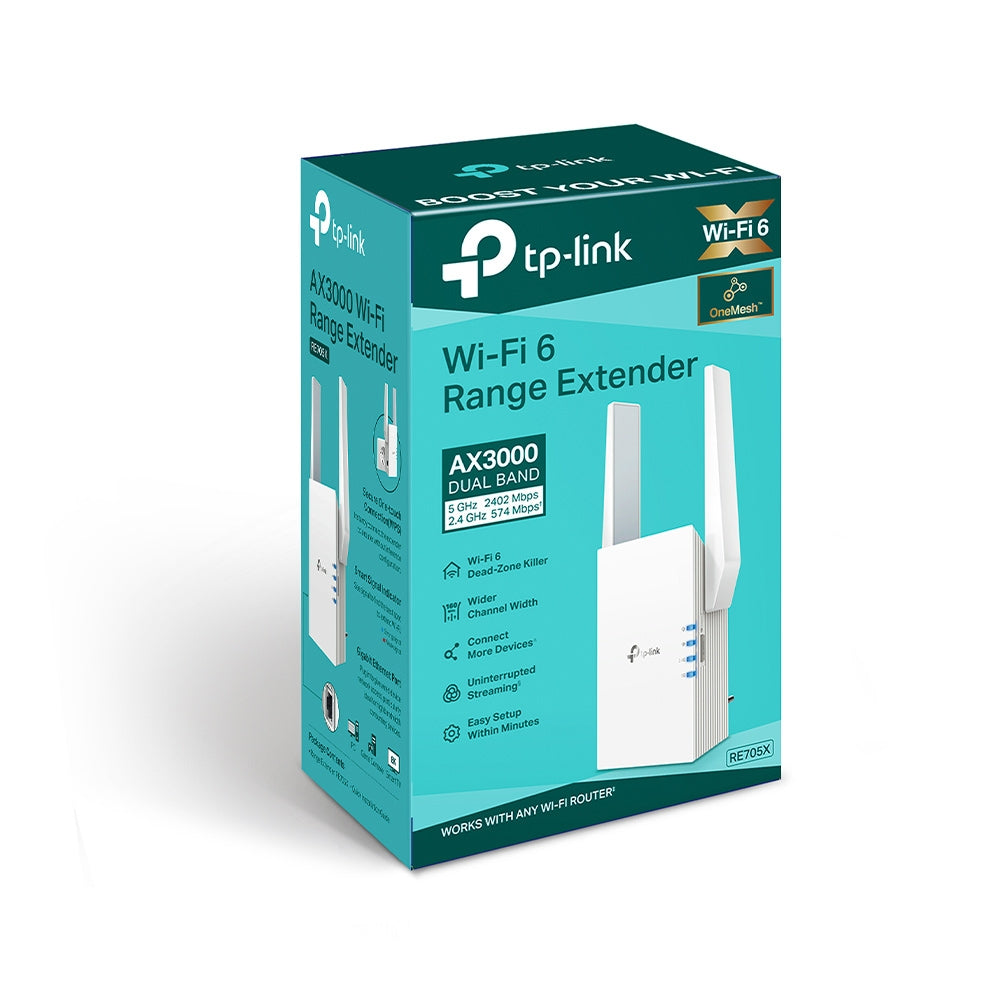

TP-Link RE705X AX3000 Mesh WiFi 6 Extender 574Mbps@2.4GHz 2402Mbps@5GHz, 1x Gigabit Ethernet Port, 2x External Antennas

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• 1x Gigabit Ethernet Port
• 2x External Antennas
• Product SKU: NWTL-RE705X

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link RE705X AX3000 Mesh WiFi 6 Extender 574Mbps@2.4GHz 2402Mbps@5GHz 1x1GBps WPS 2xAntenna

• — Dual Band WiFi 6 - Separates 5 GHz (2402 Mbps) and 2.4 GHz (574 Mbps) WiFi bands for faster speeds and greater capacity with the latest technology

• — Uninterrupted Streaming - Easily create a TP-Link OneMesh™ network for seamless whole home WiFi coverage

• — AP Mode - Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability

• — Gigabit Ethernet Port - Provides high-speed wired access, ideal for smart TVs, PCs, and game consoles

• — App Control - Easy Setup and management with your network using the TP-Link Tether app

HARDWARE FEATURES

Ports — 1 Gigabit Ethernet Port

Button — WPS Button, Reset Button

Power Consumption — 12.6W

Dimensions ( W x D x H ) — 97*46*158

Antenna — 2 External Antennas

WIRELESS FEATURES

Wireless Standards — IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz

Frequency — 2.4GHz and 5GHz

Signal Rate — 574 Mbps at 2.4GHz, 2402 Mbps at 5GHz

Reception Sensitivity — 5GHz:

11a 6Mbps:-97dBm

11a 54Mbps:-78dBm

11ax HE20 MCS0: -97dBm

11ax HE20 MCS11: -66dBm

11ax HE40 MCS0: -94dBm

11ax HE40 MCS11: -62dBm

11ax HE80 MCS0: -91dBm

11ax HE80 MCS11: -61dBm

11ax HE160 MCS11: -59dBm

2.4GHz:

11g 6Mbps:-96dBm

11g 54Mbps:-78dBm

11ax HE20 MCS0: -95dBm

11ax HE20 MCS11: -66dBm

11ax HE40 MCS0: -93dBm

11ax HE40 MCS11: -62dBm

Transmit Power — CE: 2.4GHz ≤16dBm, 5GHz ≤21dBm

Wireless Modes — Range Extender / Access Point

Wireless Functions — Enable/Disable Wireless Radio, Wireless Statistics

Wireless Security — WEP, WPA, WPA2, WPA3

OTHERS

Certification — CE, RoHS

Package Contents — Wi-Fi Range Extender RE705X

Quick Installation Guide

System Requirements — Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
