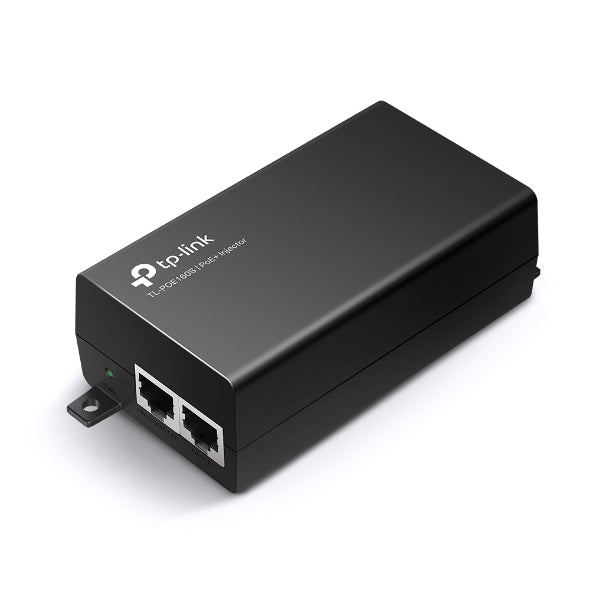

TP-Link TL-POE160S Omada PoE+ Injector, 2 Gigabit Ports, 802.3af/at, Integrated Power Supply, Wall Mountable, Plug Play

Product details

Compare mounting compatibility, size range and load limits for your workspace.

Quick comparison

• 2 Gigabit Ports
• 802.3af/at
• Integrated Power Supply
• Wall Mountable
• Product SKU: NWTL-POE160S

Before you order

Confirm the device’s mounting pattern and weight, plus the desk or wall fixing requirements. Check the listed compatibility before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-POE160S PoE+ Injector

• — 2 Gigabit ports ensure faster transmission

• — Complies with IEEE802.3af/at standards, supplies up to 30 W

• — Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

• — Automatically determines and supplies the exact power to meet the device's need

• — Wall-mounting and desktop design accommodates most installation scenarios

• — Plug & Play installation, requires no configuration

• — Integrated power supply

NETWORK

Standards and Protocols — IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

GENERAL

Certification — FCC, CE, RoHS

Environment — Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Humidity: 10% to 90%RH non-condensing

Storage Humidity: 5% to 90%RH non-condensing

HARDWARE FEATURES

Network Media — 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

100BASE-TX: UTP category 5, 5e cable (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

Ports — 1 10/100/1000Mbps RJ45 data-in port

1 10/100/1000Mbps RJ45 power+data-out port

1 AC socket

Power Consumption — Input: 100-240 V, 50/60 Hz

Output: Auto-determine the necessary power requirements (max. 30 W)

Basic Function — Auto-Sensing Algorithm enables providing power with 802.3af/at PD

Auto-determine the necessary power requirements

Wall-mounting and desktop installation supported

Plug-and-Play

LED Indicator — ON: Supplying power normally

OFF: No power supply

Dimensions ( W x D x H ) — 4.9*2.3*1.4 in (125*59.4*36.8 mm)
