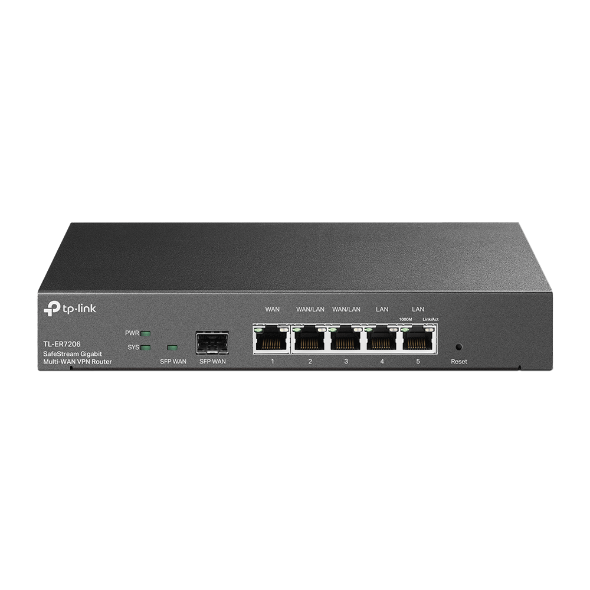

TP-Link TL-ER7206 Omada SafeStream Gigabit Multi-WAN VPN Router | 4 WAN Ports: 1 Gigabit SFP WAN port | 1 Gigabit RJ45 WAN Port

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Listed network standard or speed: Gigabit
• 4 WAN Ports: 1 Gigabit SFP WAN port
• 1 Gigabit RJ45 WAN Port
• 2 Gigabit WAN/LAN
• Product SKU: NWTL-ER7206

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-ER7206 SafeStream Gigabit Multi-WAN VPN Router

• — Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

• — Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

• — Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.

• — Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.

• — Highly Secure VPN: Supports up to 100× LAN-to-LAN IPsec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections.

• — Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.

HARDWARE FEATURES

Standards and Protocols — • IEEE 802.3, 802.3u, 802.3ab

• TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP

Interface — • 1 Fixed Gigabit SFP WAN Port

• 1 Fixed Gigabit RJ45 WAN Port

• 2 Fixed Gigabit RJ45 LAN Ports

• 2 Changeable Gigabit RJ45 WAN/LAN Ports

Network Media — • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

• 100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Button — Reset Button

Power Supply — 100–240 V~50/60 Hz

Flash — SPI 4MB + NAND 128MB

DRAM — 512MB

LED — PWR, SYS, SFP WAN, Speed, Link/Act

Dimensions ( W x D x H ) — 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
