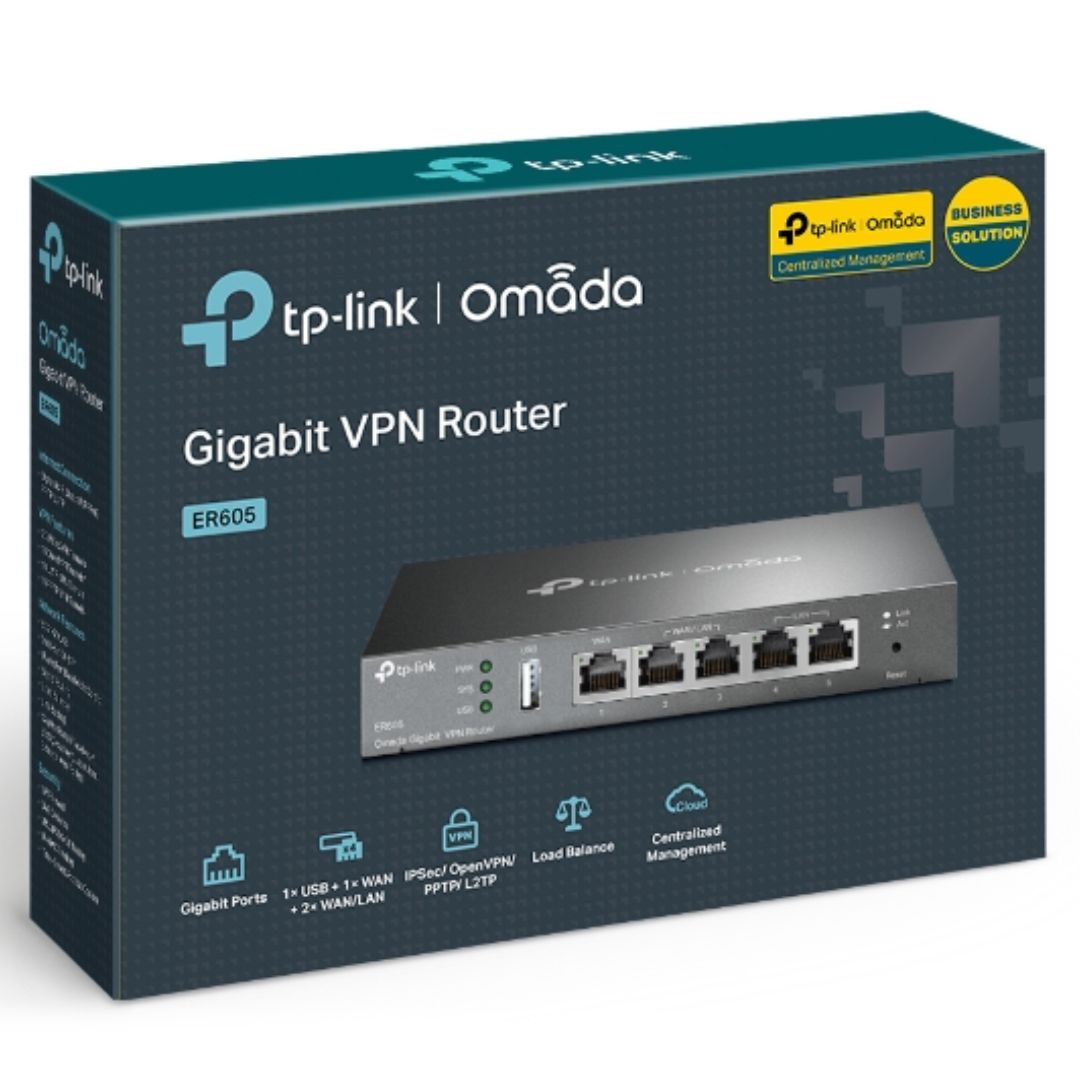

TP-Link TL-ER605 (TL-R605) SafeStream Gigabit Multi-WAN VPN Router PPPoE 1 WAN 3 Changeable WAN/LAN Ports 10BASE-T, Centralised Cloud, Omada

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Listed network standard or speed: Gigabit
• Centralised Cloud
• Omada
• Product SKU: NWTL-ER605

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-ER605 (TL-R605) SafeStream Gigabit Multi-WAN VPN Router PPPoE 1 WAN 3 Changeable WAN/LAN Ports 10BASE-T, Centralised Cloud, OMADA

• — Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.

• — Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

• — Five Gigabit Ports: High-speed wired connectivity.

• — Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports optimize bandwidth usage.

• — Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.

• — Abundant Security Features: Advanced firewall policies, DoS defence,IP/MAC/URL filtering, and more security functions protect your network and data.

HARDWARE FEATURES

Standards and Protocols — • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q

• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interface — • 1 Fixed Gigabit WAN Port

• 1 Fixed Gigabit LAN Port

• 3 Changeable Gigabit WAN/LAN Ports

Network Media — • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

• 100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Button — Reset Button

Power Supply — External 9V/0.85A DC Adapter

Flash — SPI 16MB

DRAM — 128 MB

LED — PWR, SYS, WAN, LAN

Dimensions ( W x D x H ) — 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)

PERFORMANCE

Concurrent Session — 25,000

IPsec VPN Throughput — 41.5 Mbps

BASIC FUNCTIONS

WAN Connection Type — • Static/Dynamic IP

• PPPoE

• PPTP

• L2TP

DHCP — • DHCP Server/Client

• DHCP Address Reservation

• Multi-net DHCP*

• Multi-IP Interfaces*

*Multi-IP Interfaces and Multi-Net DHCP are supported only in Controller Mode

MAC Clone — Modify WAN/LAN MAC Address*
