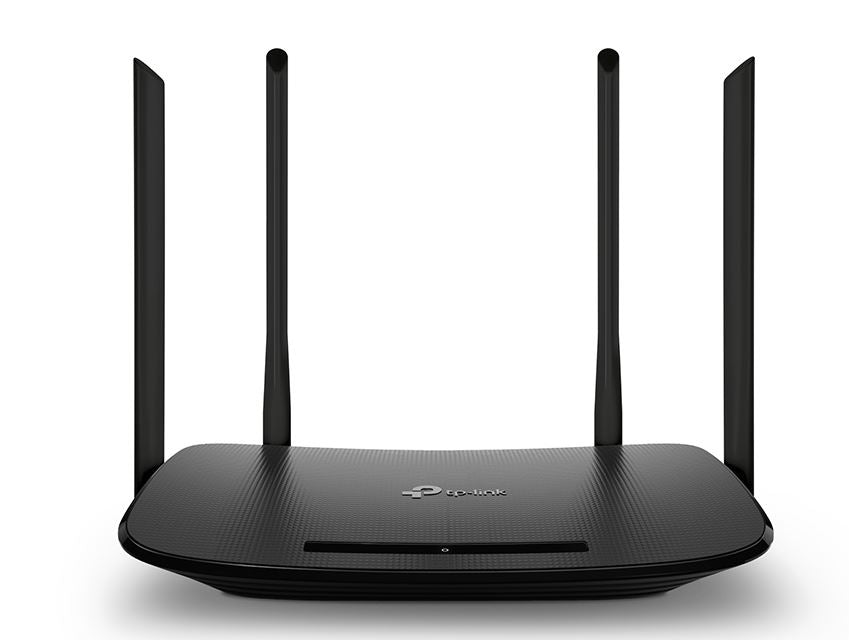

TP-Link Archer VR300 AC1200 1200Mbps Wireless VDSL/ADSL Modem Router 1.2Gbps 867Mbps@5GHz 300Mbps@2.4GHz 3xLAN 1xWAN 1xRJ11

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Listed network standard or speed: 1200Mbps
• Wireless band: 5GHz, 2.4GHz
• Product SKU: NWTL-ARCHERVR300

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link Archer VR300 AC1200 Wireless VDSL/ADSL Modem Router 1.2Gbps 867Mbps@5GHz 300Mbps@2.4GHz 3xLAN 1xWAN 1xRJ11 4xAntennas

Parental Controls: manage responsible internet access for your children

Guest Network: provides separate access for guests while securing the home network

Firewall Security: supports DoS, SPI Firewall, IP Addressing/Domain Filter, IP/MAC Address Binding

Quality of Service: prioritizes network traffic by device or application

IPTV IGMP Proxy/Snooping: supports Bridge and Tag VLAN for smooth IPTV application

IPv6: compatible with IPv6 (Internet Protocol version 6)

Multilingual Interface: provides hassle-free configuration in six languages (EN/DE/IT/TR/RU/PO)

HARDWARE FEATURES

Interface — 3 10/100 RJ45 LAN Ports

1 10/100 RJ45 LAN/WAN Port

1 RJ11 Port

Button — WPS Button

Power On/Off Button

Reset Button

Power Supply — 12V/1A

VDSL2 Standards — ITU G.993.2, Up to 17a pro¬le (POTS)

ITU-T G.993.5 (G.vector)

ITU-T G.998.4 (G.INP)

ADSL Standards — Full-rate ANSI T1.413 Issue 2,

ITU-T G.992.1(G.DMT),

ITU-T G.992.2(G.Lite),

ITU-T G.994.1 (G.hs),

ITU-T G.995.1

ADSL2 Standards — ITU-T G.992.3 (G.DMT.bis),

ITU-T G.992.4 (G.lite.bis)

ADSL2+ Standards — ITU-T G.992.5

Dimensions ( W x D x H ) — 385*290*76mm

Antenna Type — 4 fixed external antennas

WIRELESS FEATURES

Wireless Standards — IEEE 802.11a/n/ac 5GHz,

IEEE 802.11b/g/n 2.4GHz

Wireless Speeds — 867Mbps at 5GHz

300Mbps at 2.4GHz

Transmit Power — 2.4GHz <20dBm(EIRP)

5GHz <23dBm(EIRP)

Wireless Functions — Access Point / Wireless Bridge, Wireless Enable\Disable, SSID Broadcast Enable\Disable

Wireless Security — WEP, WPA/WPA2, WPA-PSK/WPA-PSK2

encryptions, QSS(WPS)

SOFTWARE FEATURES

Quality of Service — ATM QoS, Bandwidth Control

Security — NAT Firewall, Access Control, IP and MAC Address Binding

Operating Modes — VDSL/ADSL Modem Router, Wireless Router

Management — Web Based Con¬guration(HTTP), Remote management,

command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware
