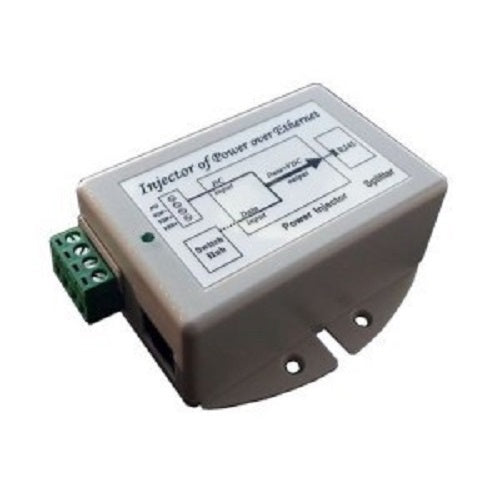

Tycon Power TP-DCDC-1248G, 9-36VDC IN. 48V 20W Gigabit Passive PoE OUT. DC to DC Converter and PoE Injector
Tycon Power TP-DCDC-1248G, 9-36VDC IN. 48V 20W Gigabit Passive PoE OUT. DC to DC Converter and PoE Injector
Need volume-based pricing? Contact us
Product details
Tycon Power TP-DCDC-1248G 1Gbps 9-36VDC IN 48V OUT 24W DC to DC PoE Description: The TP-DCDC-1248G offered by Tycon Power is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected. They have two common (-) and two (+) for connecting 2 power sources
- such as a primary with a backup power source. They have various protections for surge
- short circuit and overload. The input and output are isolated. A metal enclosure model is available for industrial applications. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4
- 5(V+) and 7
- 8(V-). They have various protections for surge
- short circuit and overload. The other models have power outputs up to 24W. SKU:TP-DCDC-1248G SPEC SHEET: Click Here USER GUIDE: Click Here DIMENSIONAL DRAWING: Click Here Features • Input Voltage 12VDC or 24VDC (Range 9-36VDC) • Passive PoE Output
- 48VDC • Dual Inputs for Connecting 2 Power Sources • Integrated 10/100/1000MB PoE Inserter • High Power up to 24W • Low Self Consumption Power • Short Circuit
- Over Current and Reverse/Over Voltage Protect • High Temperature Operation • Compact Size – Maximize Available Space • I.T.E. Power Supply
- UL Listed Applications • 12V / 24V Battery Systems
- Vehicle Applications • Wireless Access Points and Client Devices • IP Phone and Security Camera Systems
