Ubiquiti POE Injector, 24VDC, 24W, Gigabit Ethernet, ESD protection LED, Surge and Clamping Protection,Maximum Surge Discharge

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Listed network standard or speed: Gigabit
• 24VDC
• 24W
• Gigabit Ethernet
• ESD protection LED
• Product SKU: NHU-POE-24-24W-G-WH

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

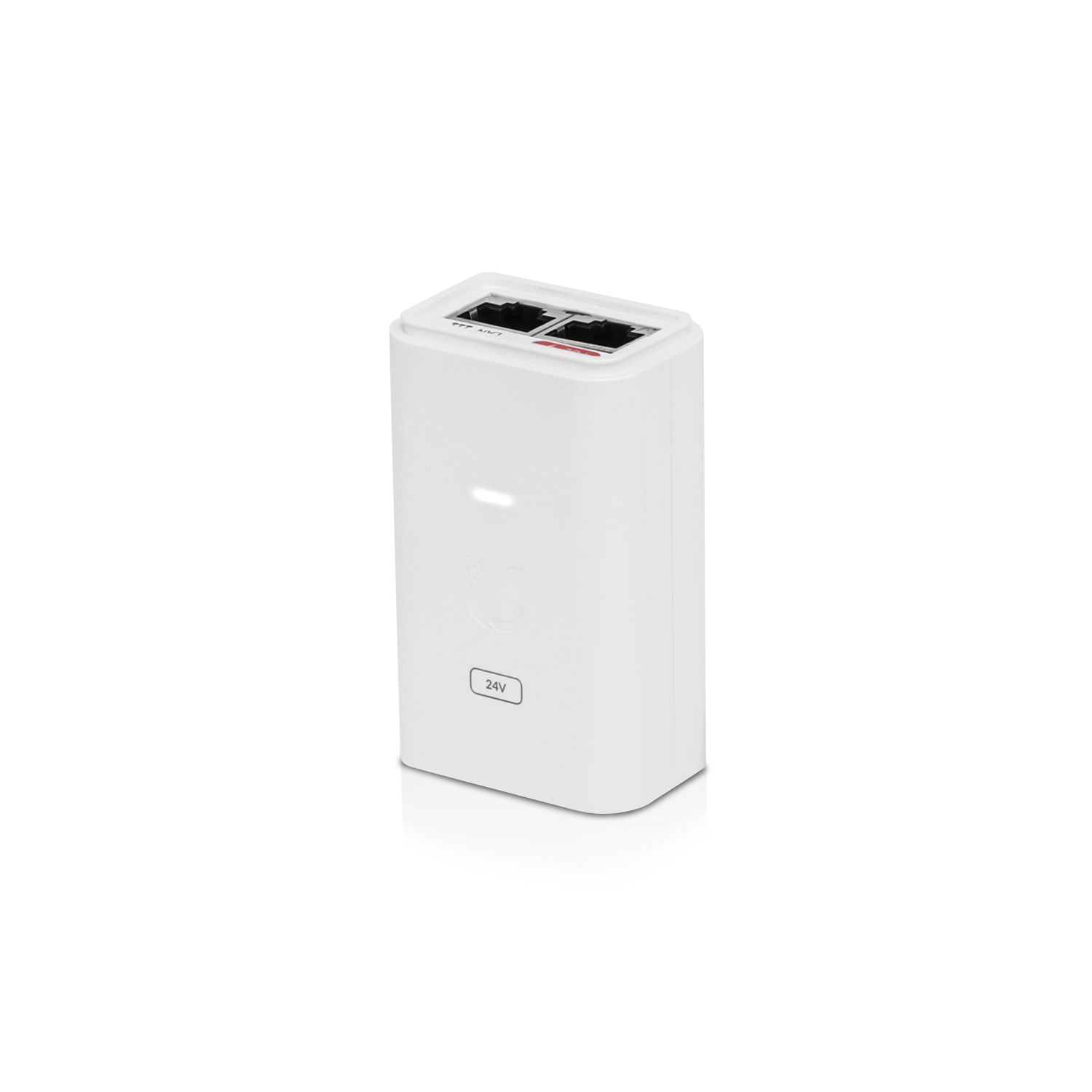

Ubiquiti POE Injector

• 24VDC
• 12W
• Gigabit Ethernet
• ESD protection LED SKU:POE-24-24W-G-WH Tech Specs: Click Here Description: Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices. Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter
• TOUGHCableTM
• and TOUGHCable Connectors Features: •Surge protection • Clamping protection •Maximum surge discharge • Peak pulse current • AC cable with earth ground • Output voltage: 24V DC @ 1.0A • Rated voltage: 100-240V AC @ 50/60Hz • Input current: 0.6A @ 120V AC
• 0.4A @ 240V AC • Inrush current: <60A peak @ 120V AC
• <120A peak @ 230V AC • Surge protection: Difference and common mode • Clamping protection: 11V data
• 60V power • Max. surge discharge: 1500A (8/20 μs) power • Peak pulse current: 36A (10/1000 μs) data
