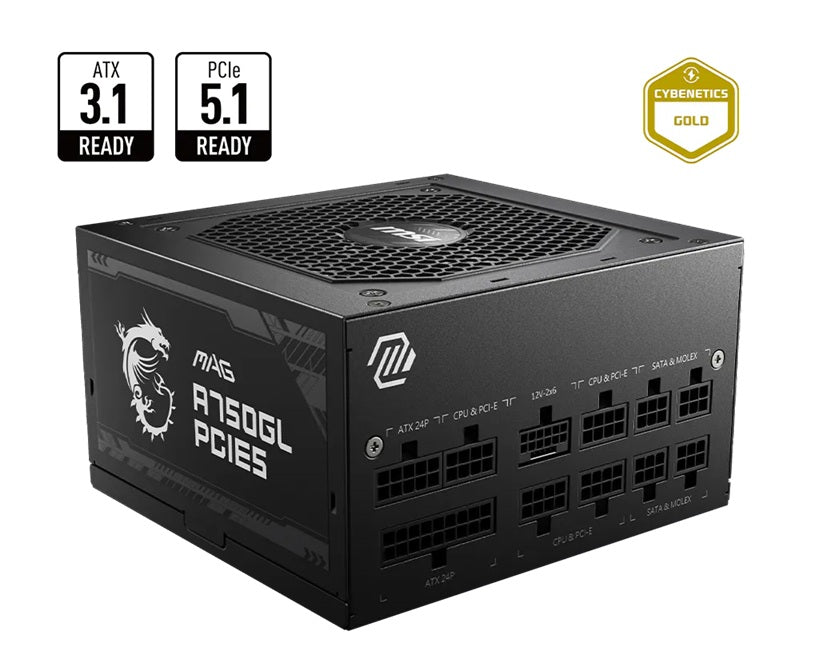

MSI MAG A750GL PCIE5 II Bulk – 750W ATX 3.1, 80+ Gold, full modular, PCIe 5.0 16-pin, 3x PCIe 6+2, 8x SATA, FDB fan, OCP/OVP/OPP/OTP/SCP/UVP, 120mm

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• 80+ Gold
• full modular
• PCIe 5.0 16-pin
• 3x PCIe 6+2
• Product SKU: PSM-A750GLPCIE5II-BULK

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

(Bulk Pack)

MSI MAG A750GL PCIE5 II Bulk – 750W ATX 3.1, 80+ Gold, full modular, PCIe 5.0 16-pin, 3x PCIe 6+2, 8x SATA, FDB fan, OCP/OVP/OPP/OTP/SCP/UVP, 120mm

•ATX 3.1 ready, native PCIe 5.1 dual-color 16-pin cable

•Supports NVIDIA® GeForce RTXTM 40 Series graphics cards

•Full modular design,Flat cables

•80 Plus Gold certified for high efficiency

•Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP

•120mm Fluid Dynamic Bearing Fan

•LLC Full Bridge Topology with DC-DC module design

SPECIFICATIONS

Efficiency Rating: 80 PLUS Gold (up to 90%)

Modular: Yes (full modular)

Fan Size: 120 mm

Fan Bearing: Fluid Dynamic Bearing

Dimensions (DxWxH): 140 x 150 x 86 mm

PFC Type: Active PFC

Input Voltage Range: 100~240 VAC

Power Watt: 750W

Power Excursion: 1500W (*up to 200% of the PSU's rated power for 100μs)

Input Frequency Range: 47-63Hz

Protection: OCP / OVP / OPP / OTP / SCP / UVP

ATX (24 pin): 1

EPS (4+4 pin): 2

PCI-E 5.0 (16 pin): 1 (450W)

PCI-E (6+2 pin): 3

SATA (15 pin): 8

PERIPHERAL (4 pin): 4

FDD (4 pin): 1
