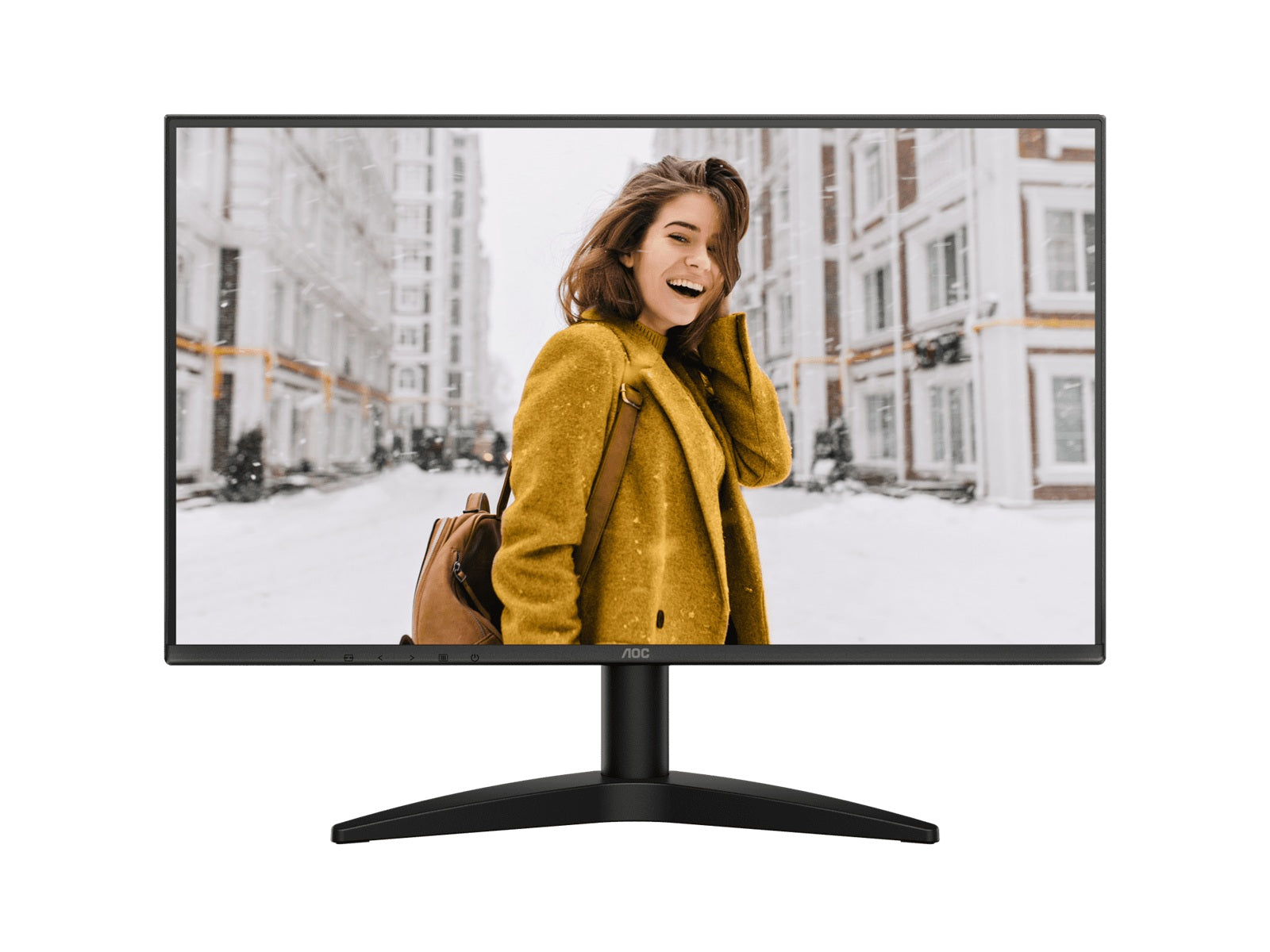

AOC 24B36X 23.8-inch: IPS, FHD 144Hz, 0.5ms MPRT, 300 nits, 1500:1, sRGB 123%, HDMI 1.4 DP 1.4, tilt stand, VESA 100×100, 18W, 2.52kg w/ stand

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• FHD 144Hz
• 0.5ms MPRT
• 300 nits
• 1500:1
• Product SKU: MNAO-24B36X

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

AOC 24B36X 23.8': IPS, FHD 144Hz, 0.5ms MPRT, 300 nits, 1500:1, sRGB 123%, HDMI 1.4 & DP 1.4, tilt stand, VESA 100×100, 18W, 2.52kg w/ stand

Elevate your gameplay with the AOC 24B36X—a 23.8' Full HD monitor built for speed and accuracy. Featuring a 144Hz refresh rate, 0.5ms MPRT response time, and Adaptive Sync, it delivers ultra-smooth visuals with zero tearing. Designed for competitive play, the IPS panel and HDR10 support ensure vibrant color and contrast, while Motion Blur Reduction (MBR) sharpens fast-moving scenes. Flicker-Free and Low Blue Mode technologies reduce eye strain, while the ultra-narrow bezel and VESA mount offer immersive, flexible setup. Connect via HDMI or DisplayPort and activate Game Mode for optimized performance.

Specifications

Model name — 24B36X

Panel — 23.8' / IPS

Pixel Pitch (mm) — 0.2745 (H) × 0.2745 (V)

Effective Viewing Area (mm) — 527.04 (H) × 296.46 (V)

Brightness (typical) — 300 cd/m²

Contrast Ratio — 1500 : 1 (typical) / Mega DCR

Response Time — 4ms GtG / 0.5ms MPRT

Viewing Angle — 178° (H) / 178° (V) (CR > 10)

Color Gamut — NTSC 112% (CIE1976) / sRGB 123% (CIE1931)

Color Accuracy — -

Optimum Resolution — 1920 × 1080 @ 144Hz – HDMI, DisplayPort

Display Colors — 16.7 Million

Signal Input — HDMI 1.4 × 1, DisplayPort 1.4 × 1

HDCP Version — -

USB Hub — No

Power Supply — External 19VDC, 1.31A

Power Consumption (typical) — 18W

Speakers — No

Line in & Earphone — Yes

Wall-Mount — 100mm × 100mm

Adjustable Stand — Tilt: -5° ~ 23°

Product without Stand (mm) — 318.5 (H) × 544.0 (W) × 35.1 (D)

Product with Stand (mm) — 414.5 (H) × 544.0 (W) × 198.0 (D)

Packaging (mm) — 420 (H) × 615 (W) × 112 (D)

Product without Stand (kg) — 2.21

Product with Stand (kg) — 2.52

Product with Packaging (kg) — 4.65

Cabinet Color — Black

Regulatory Approvals — CE / FCC / RoHS
