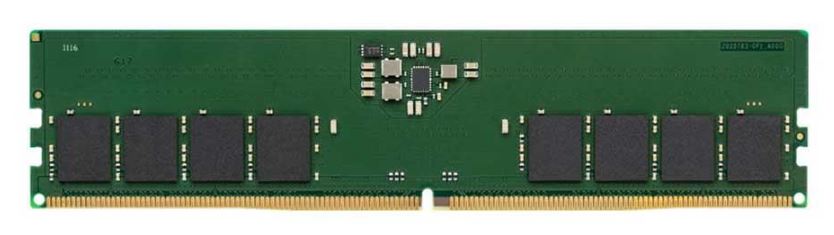

Kingston 16GB (1x16GB) DDR5 5600MT/s Non-ECC Unbuffered DIMM Memory
Kingston 16GB (1x16GB) DDR5 5600MT/s Non-ECC Unbuffered DIMM Memory
Need volume-based pricing? Contact us
Product details
Kingston 16GB (1 x 16GB) DDR5 5600MT/s Non-ECC Unbuffered DIMM Memory DDR5 5600MT/s Non-ECC Unbuffered DIMM CL46 1RX8 1.1V 288-pin 16Gbit DEFAULT FEATURES • Power Supply: VDD = 1.1V Typical • VDDQ = 1.1V Typical • VPP = 1.8V Typical • VDDSPD = 1.8V to 2.0V • On-Die ECC • PCB: Height 1.23” (31.25mm) • RoHS Compliant and Halogen-Free DEFAULT SPECIFICATIONS CL(IDD) 46 cycles Row Cycle Time (tRCmin) 48ns(min.) Refresh to Active/Refresh Command Time (tRFCmin) 295ns(min.) Row Active Time (tRASmin) 32ns(min.) UL Rating 94 V - 0 Operating Temperature 0 to +85C Storage Temperature -55 C to +100 C
