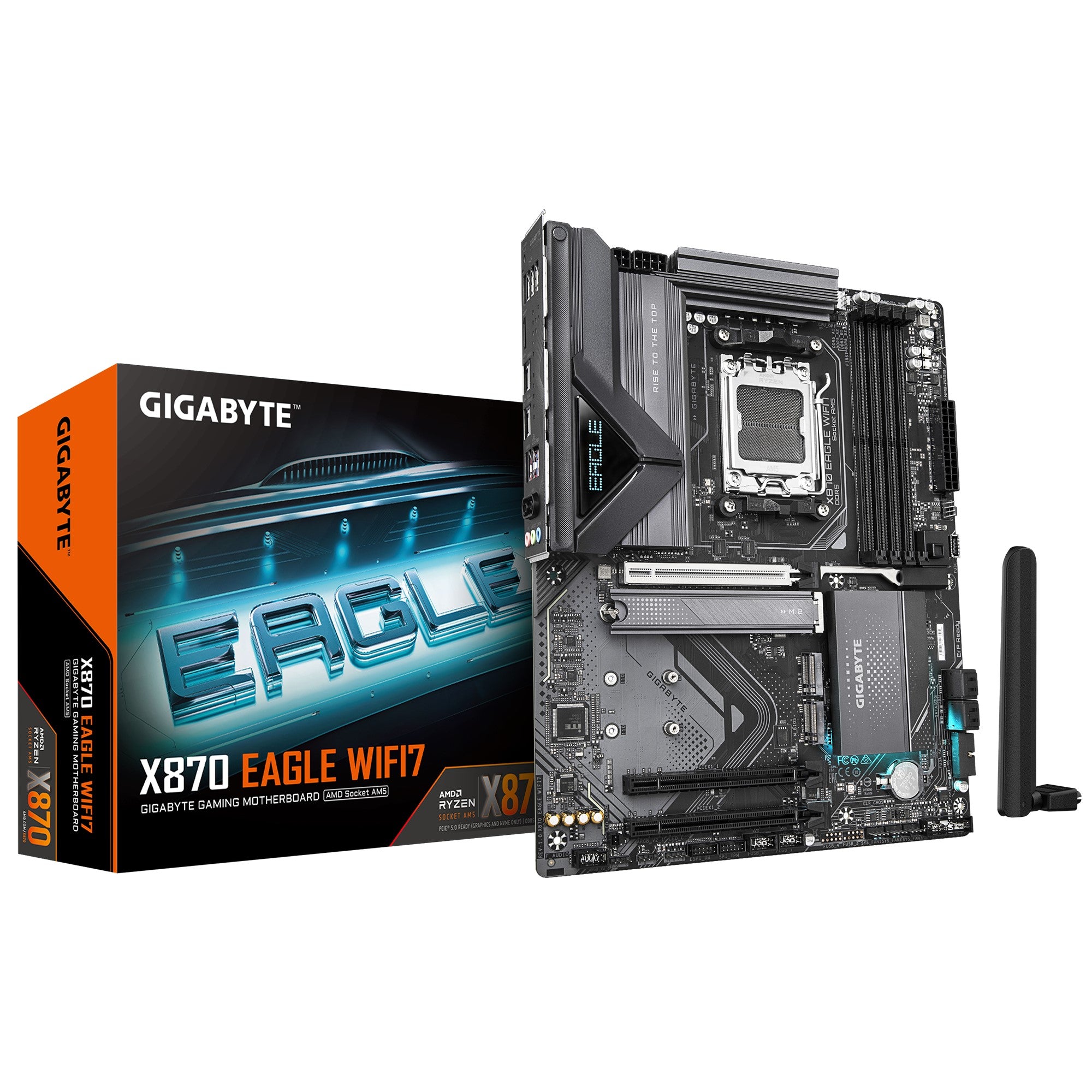

(LS) Gigabyte X870 EAGLE WIFI7 AMD AM5 ATX Motherboard 4x DDR5~256GB,3x PCIe x16, 3x M.2, 4x SATA 6, 4x USB 3.2, 4x USB2.0, 2x USB-C
$354.00
ex GST
Skip to product information
(LS) Gigabyte X870 EAGLE WIFI7 AMD AM5 ATX Motherboard 4x DDR5~256GB,3x PCIe x16, 3x M.2, 4x SATA 6, 4x USB 3.2, 4x USB2.0, 2x USB-C
Storage: 256GB
$354.00
ex GST
In stockNeed volume-based pricing? Contact us
Product details
Gigabyte X870 EAGLE WIFI7 AMD AM5 ATX Motherboard 4x DDR5~256GB,3x PCIe x16, 3x M.2, 4x SATA 6, 4x USB 3.2, 4x USB2.0, 2x USB-C
Cpu
| AMD Socket AM5, support for: | |
|---|---|
| AMD Ryzen™ 9000 Series Processors/ | |
| AMD Ryzen™ 8000 Series Processors/ | |
| AMD Ryzen™ 7000 Series Processors | |
| Chipset |
Amd X870
| Memory | |
|---|---|
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Onboard Graphics | |
| Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: | |
| - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz | |
| Integrated Graphics Processor with AMD Radeon™ Graphics support: | |
| - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| Audio | |
| Realtek® Audio CODEC |
Lan
| Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
|---|---|
| Expansion Slots | |
| 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: | |
| AMD Ryzen™ 900/7000 Series Processors support PCIe 5.0 x16 mode | |
| AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
| AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| Chipset: | |
| - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) | |
| Storage Interface | |
| 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: | |
| AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs | |
| AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
| AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs | |
| 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs | |
| 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
USB
| CPU+ASMedia USB4® controller: | |
|---|---|
| - 2 x USB4® USB Type-C® ports on the back panel | |
| CPU: | |
| - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| - 1 x USB 3.2 Gen 1 port on the back panel | |
| CPU+USB 2.0 Hub: | |
| - 4 x USB 2.0/1.1 ports on the back panel | |
| Chipset: | |
| - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header | |
| - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| - 4 x USB 2.0/1.1 ports available through the internal USB headers |
