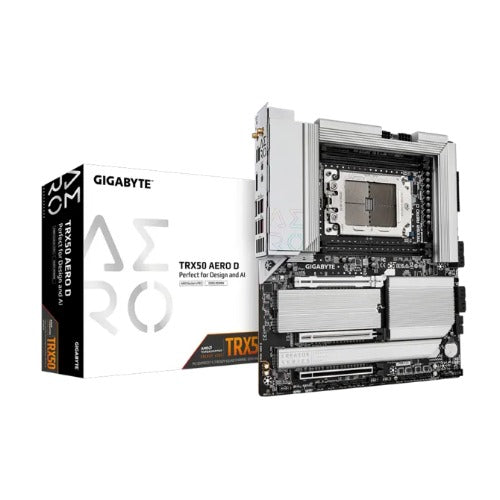

(LS) Gigabyte TRX50 AERO D AMD Ryzen Motherboard 4x DDR5~256GB,2x PCIe x16 slots, 4x M.2, 8x SATA 6Gb/s connectors, 11x USB 3.2, 4x USB2.0, 2x
$1,021.00
ex GST
Skip to product information
(LS) Gigabyte TRX50 AERO D AMD Ryzen Motherboard 4x DDR5~256GB,2x PCIe x16 slots, 4x M.2, 8x SATA 6Gb/s connectors, 11x USB 3.2, 4x USB2.0, 2x
Storage: 256GB
$1,021.00
ex GST
In stockNeed volume-based pricing? Contact us
Product details
Gigabyte TRX50 AERO D AMD Ryzen Motherboard 4x DDR5~256GB,2x PCIe x16 slots, 4x M.2, 8x SATA 6Gb/s connectors, 11x USB 3.2, 4x USB2.0, 2x
Cpu
| AMD Socket sTR5, support for: | |
|---|---|
| AMD Ryzen™ Threadripper™ PRO 7000 processors / AMD Ryzen™ Threadripper™ 7000 Series processors | |
| Chipset |
Amd Trx50
| Memory | |
|---|---|
| Support for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS) | |
| 4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory | |
| Quad channel memory architecture | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules | |
| Audio | |
| Realtek® ALC4080 CODEC (rear panel audio) | |
| - Support for DTS:X® Ultra | |
| - High Definition Audio | |
| - 2-channel | |
| Realtek® ALC897 CODEC (front panel audio) |
Lan
| Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) | |
|---|---|
| Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN) | |
| Wireless Communication module | |
| Qualcomm® Wi-Fi 7 QCNCM865 | |
| - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| - BLUETOOTH 5.3 | |
| - Support for 11be 320MHz wireless standard | |
| Note: | |
| Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10) | |
| Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations. | |
| Expansion Slots | |
| CPU: | |
| - 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2) | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot. | |
| - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3) | |
| Storage Interface | |
| CPU: | |
| - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) | |
| - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU) | |
| - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU) | |
| CPU+Chipset: | |
| - 8 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
USB
| CPU: | |
|---|---|
| - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| Chipset+Intel® JHL8540 USB4® controller: | |
| - 2 x USB4® USB Type-C® ports on the back panel | |
| Chipset: | |
| - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header | |
| - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| - 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| CPU+USB 3.2 Gen 1 Hub: | |
| - 4 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset+USB 2.0 Hub: | |
| - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Internal I/O Connectors | |
| 1 x 24-pin ATX main power connector | |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 4 x system fan headers | |
| 4 x system fan/water cooling pump headers | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 4 x M.2 Socket 3 connectors | |
| 8 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x noise detection header | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| 1 x power button | |
| 1 x Clear CMOS button | |
| 1 x reset button | |
| 1 x reset jumper | |
| 2 x temperature sensor headers | |
| 1 x Clear CMOS jumper | |
| Back Panel Connectors | |
| 1 x Q-Flash Plus button | |
| 2 x SMA antenna connectors (2T2R) | |
| 1 x DisplayPort In port | |
| 1 x USB4® USB |
