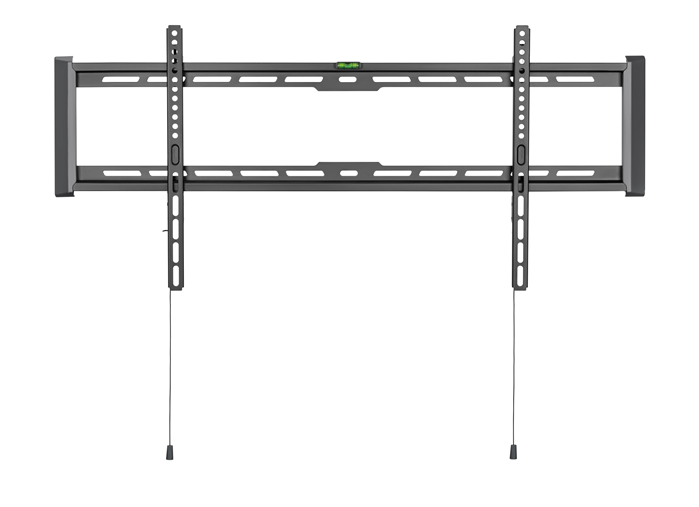

BrateckUltra-Slim and Heavy-Duty TV Wall Mount For 43-inch-90-inch up to 75KG, VESA 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, 800x400 Black (MABT-LP77-48F)
BrateckUltra-Slim and Heavy-Duty TV Wall Mount For 43-inch-90-inch up to 75KG, VESA 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, 800x400 Black (MABT-LP77-48F)
Product details
Compare mounting compatibility, size range and load limits for your workspace.
Quick comparison
- Listed load limit: up to 75KG
- Mounting pattern: VESA 200x200
- Product SKU: MABT-LP77-48F
Before you order
Confirm the device’s mounting pattern and weight, plus the desk or wall fixing requirements. Check the listed compatibility before ordering.
Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.
Full product details
BrateckUltra-Slim and Heavy-Duty TV Wall Mount For 43'-90' up to 75KG, VESA 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400 Black
FEATURES:
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Ultra-slim design
●Decorative Covers: for a more elegant look
●Heavy-Duty Construction: provides extra strength and durability
●Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
●Bubble level included
●Magnetic Strap End: hides itself when not in use.
SPECIFICATIONS
Product Category: — Fixed TV Wall Mount
Rank: — Standard
Material: — Steel, Plastic
Metal Sheet Thickness: — Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059' cold-rolled sheet,Wall Plate THK=0.059' cold-rolled sheet)
Surface Finish: Powder Coating
Color: Matte Black
Dimensions: — 27x970x430mm (1.1'x38.2'x16.9')
Fit Screen Size: — 43'-90'
Fit Curved TV: — Yes
Mounting Hole Pattern: — VESA & Universal
VESA Compatible: — 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400
Max. Mounting Hole: — 868x405
Weight Capacity: — 75kg (165lbs)
Strength Tested: — 4 Times Approved
Profile: — 27mm (1.1')
Screen Level: 8mm
Tilt Range: — +4°~-10°
Screen Level: 8mm
Screen Freely Tilting: No
Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type: — Detachable Panel
Wall Plate Type: — Fixed Wall Plate
Direction Indicator: Yes
Bubble Level: — Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package: — Normal/Ziplock Polybag,Compartment Polybag
