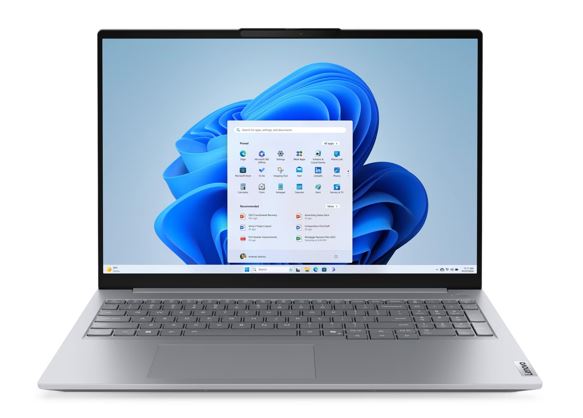

Lenovo ThinkBook 16 Gen 8 16-inch Laptop | Ultra 5 135H | 16GB / 512GB

Product details

Compare this laptop for your team’s daily work. Use the installed processor, memory, storage and display details below to shortlist the right configuration.

Quick comparison

• Processor: Intel Core Ultra 5 135H
• Memory: 16GB RAM
• Storage: 512GB SSD
• Display: 16-inch WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz
• Operating system: Windows 11 Pro
• Product SKU: NBL-16-U516512G8H

Before you order

Before ordering for your team, confirm docking, monitor and software compatibility, memory upgrade needs and the exact warranty or support entitlement for this SKU.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

PERFORMANCE

Processor — Intel Core™ Ultra 5 135H, 14C (4P + 8E + 2LPE) / 18T, Max Turbo up to 4.6GHz, 18MB Intel® Smart Cache

AI PC Category — AI PC

NPU — Integrated Intel® AI Boost, up to 11 TOPS

Graphics — Integrated Intel® Arc™ Graphics Functions as Intel® Graphics

Chipset — Intel® SoC Platform

Memory — 1x 16GB SODIMM DDR5-5600

Memory Slots — Two DDR5 SODIMM slots, dual-channel capable

Max Memory — Up to 64GB DDR5-5600

Storage — 512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Slot — Two M.2 2280 PCIe® 4.0 x4 slots

Max Storage Support — Up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 2TB each

Card Reader — SD Card Reader

Audio Chip — High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers — Stereo speakers, 2W x2, Dolby Audio™

Microphone — 2x, Array

Camera — FHD 1080p + IR Hybrid with Privacy Shutter

Battery — 45Wh

Power Adapter — 65W USB-C® (3-pin)

Special Features — Modern Standby

DESIGN

Display — 16' WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz

Touchscreen — None

Screen-to-Body Ratio — 90%

Color Calibration — No Color Calibration

Pen — Pen Not Supported

Keyboard — Backlit, English

Touchpad — Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Dimensions (WxDxH) — 356 x 253.5 x 17.5 mm (14.01 x 9.98 x 0.69 inches)

Weight — Starting at 1.7 kg (3.75 lbs)

Case Color — Arctic Grey

Case Material — Aluminium (Top), PC-ABS (Bottom)

Surface Treatment — Anodizing Sandblasting (Top), Texture (Bottom)

SOFTWARE

Operating System — Windows® 11 Pro, English (US) / English (UK)

Bundled Software — Office Trial

CONNECTIVITY

WLAN + Bluetooth — Wi-Fi® 6E, 802.11ax 2x2 + BT5.3

WWAN — WWAN Not Supported

Ethernet — 100/1000M (RJ-45)

Standard Ports — 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)

1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On

1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 45-65W and DisplayPort™ 1.4

1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 45-65W and DisplayPort™ 2.1

1x HDMI® 2.1, up to 4K/60Hz

1x Headphone / microphone combo jack (3.5mm)

1x Ethernet (RJ-45)

1x SD card reader

Docking — Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkBook® 16 G8 IAL

SECURITY & PRIVACY

Security Chip — Firmware TPM 2.0 Enabled

Physical Locks — Kensington Nano Security Slot™, 2.5 x 6 mm

Fingerprint Reader — Touch Style, Match-on-Chip, Integrated in Power Button

Other Security — Camera privacy shutter

IR camera for Windows® Hello (facial recognition)

MANAGEABILITY

System Management — Non-vPro®

SERVICE

Base Warranty — 1-year, Courier or Carry-in

Included Upgrade — 1Y Onsite upgrade from 1Y Courier/Carry-in

ACCESSORIES

Bundled Accessories — None

CERTIFICATIONS

Green Certifications — ENERGY STAR® 9.0

EPEAT Gold Registered

ErP Lot 6/26

RoHS compliant

TCO Certified, generation 10

Mil-Spec Test — MIL-STD-810H military test passed
