Lenovo ThinkBook 14 Gen 9 14-inch Laptop | AMD Ryzen 5 220 | 16GB RAM / 512GB SSD

Product details

Compare the installed processor, memory, storage and operating system when shortlisting equipment for your team.

Quick comparison

• Processor: AMD Ryzen 5 220
• Memory: 16GB RAM
• Storage: 512GB SSD
• Operating system: Windows 11 Pro
• Screen size: 14-inch
• Product SKU: NBL-14-R516512G9

Before you order

Confirm software requirements, docking and monitor compatibility, memory upgrade options and the exact warranty entitlement before a team rollout.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

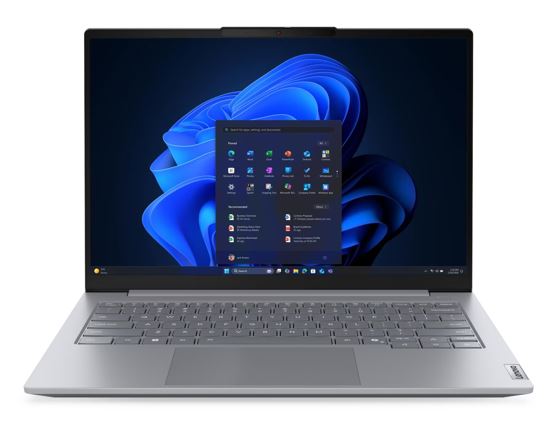

LENOVO ThinkBook 14 G9 14' WUXGA AMD Ryzen 5 220 16GB DDR5 512GB SSD Windows 11 PRO Radeon 740M GPU Thunderbolt Fingerprint 1YROS 1.3kg

PERFORMANCE

Processor — AMD Ryzen™ 5 220 (6C / 12T, 3.2 / 4.9GHz, 6MB L2 / 16MB L3)

AI PC Category — Non-AI PC

NPU — None

Graphics — Integrated AMD Radeon™ 740M Graphics

Chipset — AMD SoC Platform

Memory — 1x 16GB SODIMM DDR5-5600

Memory Slots — Two DDR5 SODIMM slots, dual-channel capable

Max Memory — Up to 64GB DDR5-5600

Storage — 512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Slot — Two M.2 slots • One M.2 2242 PCIe® 4.0 x4 slot • One M.2 2280 PCIe® 4.0 x4 slot

Max Storage Support — Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 2TB • M.2 2280 SSD up to 2TB

Card Reader — SD Card Reader

Audio Chip — High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers — Stereo speakers, 2W x2, Dolby Audio™

Microphone — 2x, Array

Camera — FHD 1080p + IR Hybrid with Privacy Shutter

Battery — 48Wh

Power Adapter — 65W USB-C® (3-pin)

Special Features — Modern Standby

DESIGN

Display — 14' WUXGA (1920x1200) IPS 400nits Anti-glare, 45% NTSC, 60Hz

Touchscreen — None

Screen-to-Body Ratio — 90%

Color Calibration — No Color Calibration

Pen — Pen Not Supported

Keyboard — Backlit, English

Touchpad — Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Dimensions (WxDxH) — 313.5 x 224 x 17.5 mm (12.34 x 8.82 x 0.69 inches)

Weight — Starting at 1.36 kg (2.99 lbs)

Case Color — Arctic Grey

Case Material — Aluminium (Top), PC-ABS (Bottom)

Surface Treatment — Anodizing Sandblasting (Top), Texture (Bottom)

SOFTWARE

Operating System — Windows® 11 Pro, English (US) / English (UK)

Bundled Software — Office Trial

CONNECTIVITY

WLAN + Bluetooth — Wi-Fi® 6, 802.11ax 2x2 + BT5.2

WWAN — WWAN Not Supported

Ethernet — 100/1000M (RJ-45)

Standard Ports — 1x USB-A (USB 5Gbps), Always On

1x USB-A (USB 5Gbps)

2x USB-C® (USB4® 40Gbps), with USB PD 45-65W and DisplayPort™ 1.4a

1x HDMI® 2.1, up to 4K/60Hz

1x Headphone / microphone combo jack (3.5mm)

1x Ethernet (RJ-45)

1x SD card reader

Docking — Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for ThinkBook® 14 G9 AHP

SECURITY & PRIVACY

Security Chip — Discrete TPM 2.0 Enabled

Physical Locks — Kensington Nano Security Slot™, 2.5 x 6 mm

Fingerprint Reader — Touch Style, Match-on-Chip, Integrated in Power Button

Other Security — Camera privacy shutter

IR camera for Windows® Hello (facial recognition)

Included Upgrade — 1Y Onsite
