Simplecom SE640 USB4 to NVMe M.2 SSD USB-C Enclosure 40Gbps

Product details

Compare rack dimensions, mounting format and equipment fit before planning an installation.

Quick comparison

• Product: Simplecom SE640 USB4 to NVMe M.2 SSD USB-C Enclosure 40Gbps
• Product SKU: HXSI-SE640

Before you order

Confirm rack height, width, depth, load rating and mounting compatibility. Check included hardware, site access and installation requirements.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

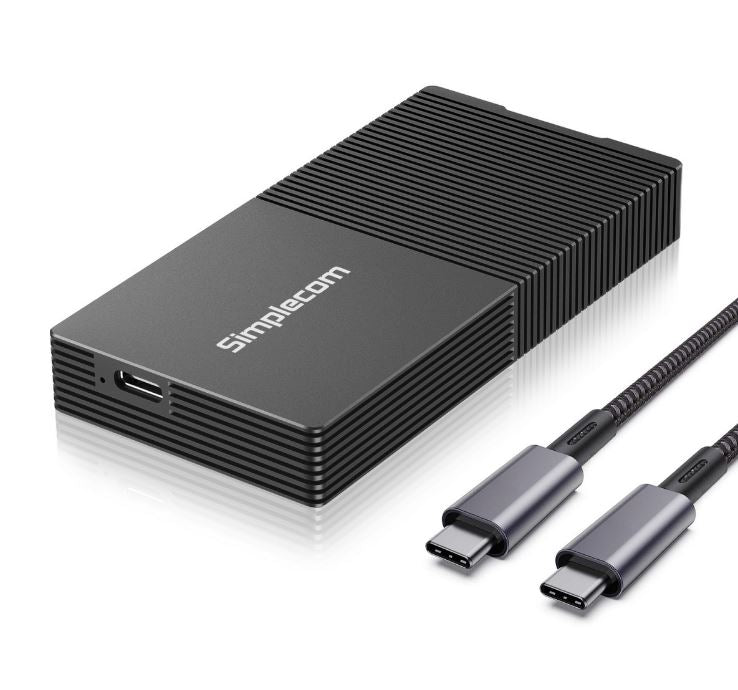

Simplecom SE640 USB4 to NVMe M.2 SSD USB-C Enclosure 40Gbps

Features

USB4 interface supports data transfer speed up to 40Gbps

Transform your NVMe M.2 SSD into an ultra fast portable USB drive

Backward compatible with USB 3.0/3.1/3.2 interfaces at 5Gbps or 10Gbps

Full aluminium case for durability and excellent heat dissipation

Screwless aluminium case design, easy to open and lock the back cover

Supports USAP for faster data transfer speed and maximum performance

Supports TRIM command for improved data writing to extend SSD life

Easy to Install, plug and play, no additional driver needed

Specifications

Model: SE640

Interface: USB-C (USB4)

Compatibility: USB 2.0/3.0/3.1/3.2, Thunderbolt 3/4

Housing Material: Aluminium

Transfer Rate: up to 40Gbps on USB4, 10Gbps on USB 3.2 Gen2, 5Gbps on USB 3.2 Gen1

Compatible M.2 Protocol: NVMe M.2

Compatible M.2 Size: 2280

Read/Write Speed: Up to 3800MB/s Read, 3100MB/s Write

Dimension: 10 x 5 x1.4cm (LxWxH)

Weight: 95g

Operating System Support: Windows 10 or higher, macOS 10.5 or higher, Linux

Package Contents

1x SE640 USB4 NVMe Enclosure

1x USB4 Cable

1x Thermal Pad

Important Note

For NVMe M.2 2280 SSD only, SATA M.2 SSD is not supported.

Due to different systems and testing application algorithms, the read and write speed test results on macOS system will be slower than on Windows system.

To utilize the full bandwidth of the USB4 interface, please install high performance NVMe M.2 SSD into the enclosure, PCIe 4.0 NVMe M.2 SSDs are recommended.

The metal case will turn to a relatively high temperature during operation, which is normal and will not cause damage to your SSD as the metal case will effectively absorb heat.
