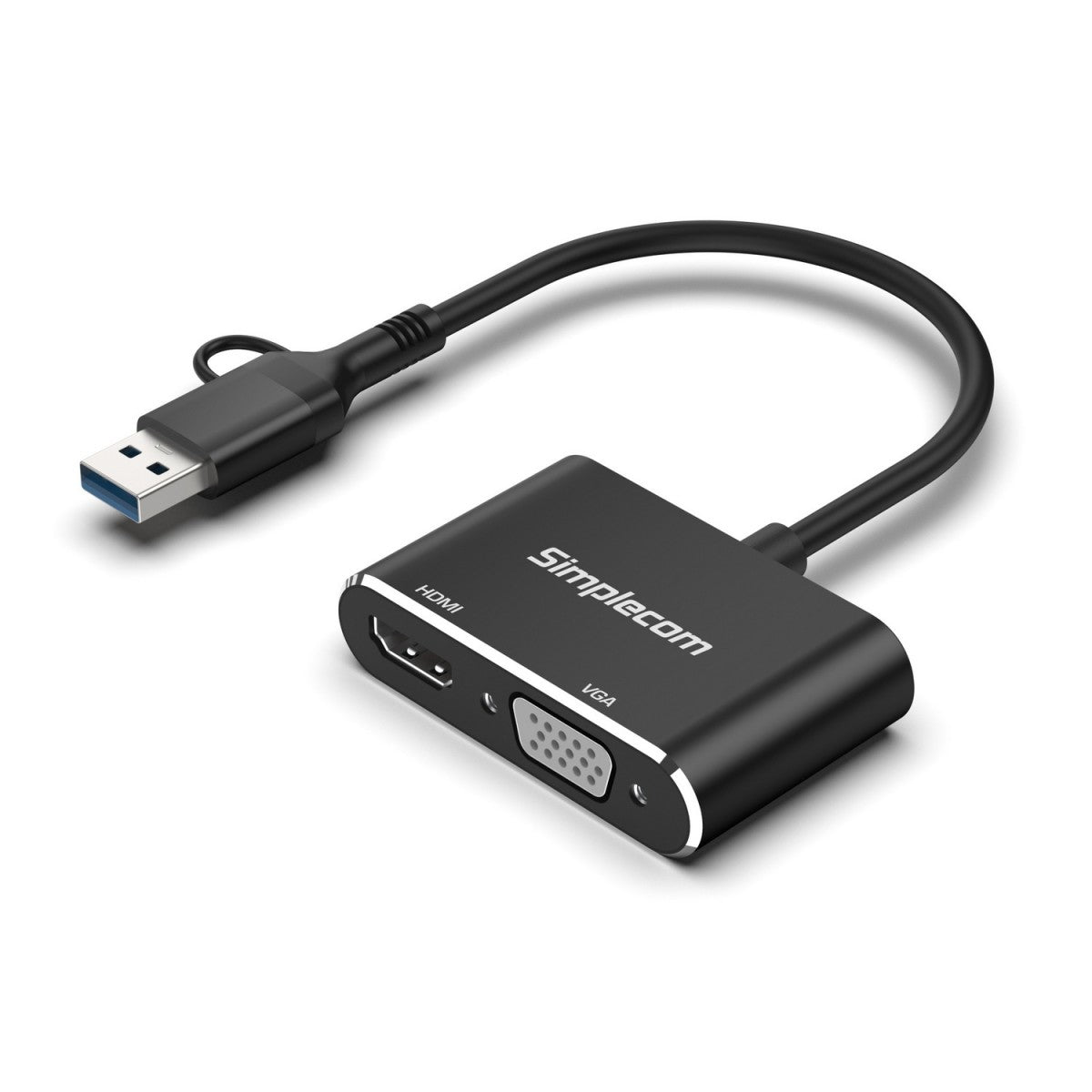

Simplecom DA326C USB 3.0 and USB-C to HDMI + VGA Video Card Adapter Full HD 1080p

DA326C is a USB to HDMI and VGA external video adapter with a hybrid USB-C and USB-A connector, making it ideal for both laptops and desktop PCs. It converts a USB port into an HDMI or VGA output, supporting resolutions up to Full HD 1080p. The HDMI port also transmits both video and audio.

Whether you're working, presenting, or streaming, this adapter supports Extended and Mirrored display modes (one extended screen only), making it an easy and convenient way to add multi-monitor capability to your PC. It can increase productivity by adding an extended screen to your computer, and effectively extending the desktop space, ideal for spreadsheets, word processors and makes multi-tasking easier.

The adapter features aluminium housing that's compact, lightweight, and easy to carry. Driver installation is quick and easy with the built-in USB flash drive. Compatible with latest Windows System, it offers a convenient solution for connecting HDMI displays to PCs requiring additional displays, especially when other video ports are occupied.

Features

USB-C and USB-A hybrid connector, for laptop or desktop PC

Supports up to 1080p Full HD resolution via HDMI and VGA ports

HDMI port supports both video and audio output

Supports Extended or Mirrored display mode (one extended screen only)

Compact, lightweight, and portable design

USB powered, no external power required

Durable and stylish aluminium alloy housing

Easy driver installation from built-in USB flash drive

Compatible with Windows 10 and above

Specifications

Input: USB-A/USB-C (SuperSpeed 5Gbps)

Output: HDMI 1.4, VGA

Audio: UAC (USB Audio Class) 48KHz stereo

Resolution: up to 1080p@60Hz (1920x1080)

Display Modes: Mirrored or Extended (one extended screen only)

Housing Material: Aluminium

Operation Temperature: 0 - 45°C

Cable Length: 10cm

Dimension: 6.2cm x 4cm x 1.5cm

Weight: 47g approx.

System Requirement

Available USB 5Gbps USB-C port or USB-A port (USB 3.0 port)

Windows 10 and later operating systems

Important Note

This is a dedicated USB graphic adapter that operates independently of the computer's internal graphics processor, and it does not require DP Alt mode when using a USB-C port.

This USB display adapter supports Windows 10 and later systems only, Windows 7/8 and older Windows systems are not supported, macOS is not supported

Built-in flash drive for driver installation. When you plug in this adapter for the first time, a new USB drive will appear on your PC. Open the USB drive and double-click the setup file to install the driver.

This adapter supports one extended screen only, HDMI and VGA cannot display separate screens.
