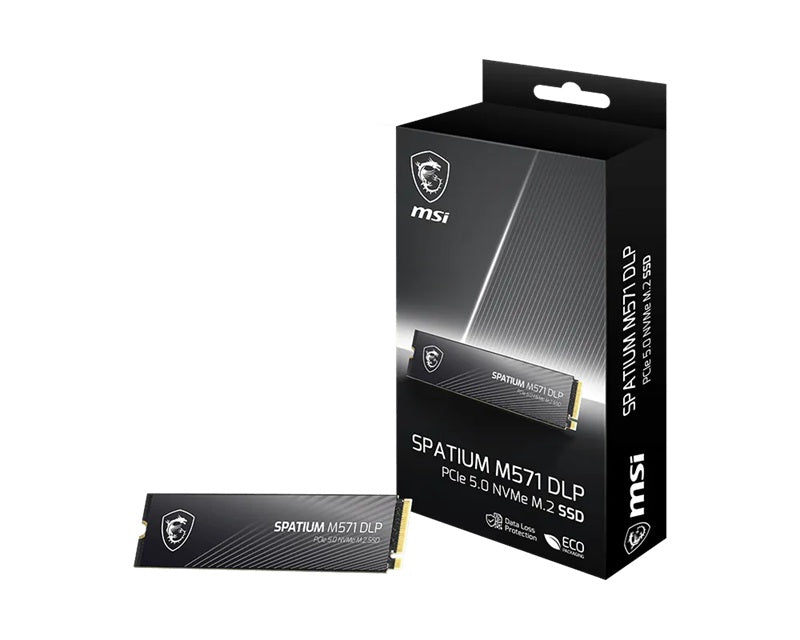

MSI SPATIUM M571 DLP PCIe 5.0 NVMe M.2 4TB, PCIe 5.0x4, NVMe 2.0, M.2 2280, Phison E28, 14500/11000MB/s, 2600K IOPS, 2800TBW

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• PCIe 5.0x4
• NVMe 2.0
• M.2 2280
• Phison E28
• Product SKU: HBM-SPATIUM-M571DLP-4TB

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

MSI SPATIUM M571 DLP PCIe 5.0 NVMe M.2 4TB, PCIe 5.0x4, NVMe 2.0, M.2 2280, Phison E28, 14500/11000MB/s, 2600K IOPS, 2800TBW, 5yr wty

SPECIFICATIONS

Model Name SPATIUM M571 DLP PCIe 5.0 NVMe M.2

Capacity 4TB

Controller PHISON E28

Flash Memory 3D NAND

DRAM Cache 4GB LPDDR4

Form Factor M.2 2280

Interface PCIe Gen5x4, NVMe 2.0

Compatibility PCIe Gen5 / Gen4 / Gen3 / Gen2 / Gen1

Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)

Sequential Read up to (MB/s) 14500

Sequential Write up to (MB/s) 11000

Random Read 4KB up to (IOPS) 2600K

Random Write 4KB up to (IOPS) 2600K

Maximum Operating Power(W) 6.5

Idle Power PS3 (mW) 30

Low Power L1.2 (mW) 5

Operating Temperatures 0°C – 70°C

Storage Temperatures -40°C – 85°C

Terabytes Written (TBW) 2800

Mean Time Between Failure (MTBF) Up to 1,500,000 Hours

Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

Advanced Features

Wear Leveling (Extends NAND flash

lifespan)

Bad Block Management (Prevent unstable

data storage)

Over-Provision (Improve performance,

endurance, and reduce write amplification)

Firmware Upgrade (Updates device

instructions to add features, fix issues, and

enhance performance)

TRIM (Performance Optimization, OS support

required)

SMART (Self-Monitoring, Analysis and

Reporting Technology)
