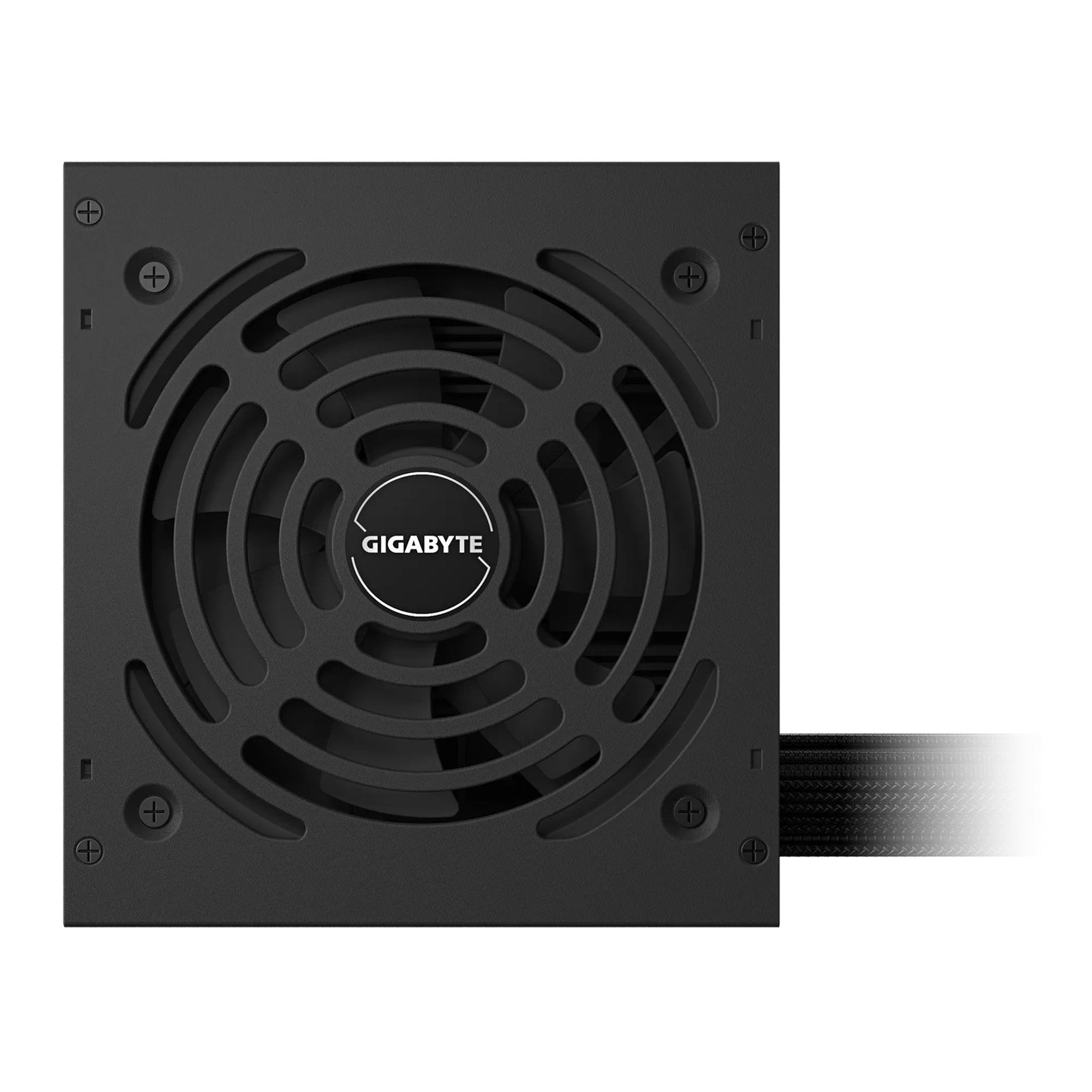

Gigabyte GP-P650G PCIE 5.1, 650W, ATX12V v3.1, 80+Gold, 90%, 120mm HYB, PFC>0.9, 100-240V, 10-6A, 60-50Hz, MTBF>100k, PCIe5.1

Product details

Gigabyte GP-P650G PCIE 5.1, 650W, ATX12V v3.1, 80+Gold, 90%, 120mm HYB, PFC>0.9, 100-240V, 10-6A, 60-50Hz, MTBF>100k, OVP/OPP/SCP/UVP/OCP/OTP, PCIe5.1 Specification Model GP-P650G PG5​ Type Intel Form Factor ATX 12V v3.1 PFC Active PFC(>0.9 typical) Input Voltage 100-240 Vac Input Current 10-6A Input Frequency 60-50 Hz Output Capacity 650W Dimensions 150 x 140 x 86 mm Fan Type 120mm HYB Fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protections OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >17ms Cable Type Embossed, All black Connectors ATX/MB 20+4 Pin x 1 : 600mm*1 CPU/EPS 4+4 Pin x 1 : 600mm + 150mm*1 PCI-e 16 Pin x 1: 500mm*1 PCI-e 6+2 Pin x 2 : 500mm+150mm*1 SATA x 6 : 420mm+150mm+150mm*2 4 Pin Peripheral x 3 : 420mm+150mm+150mm*1
