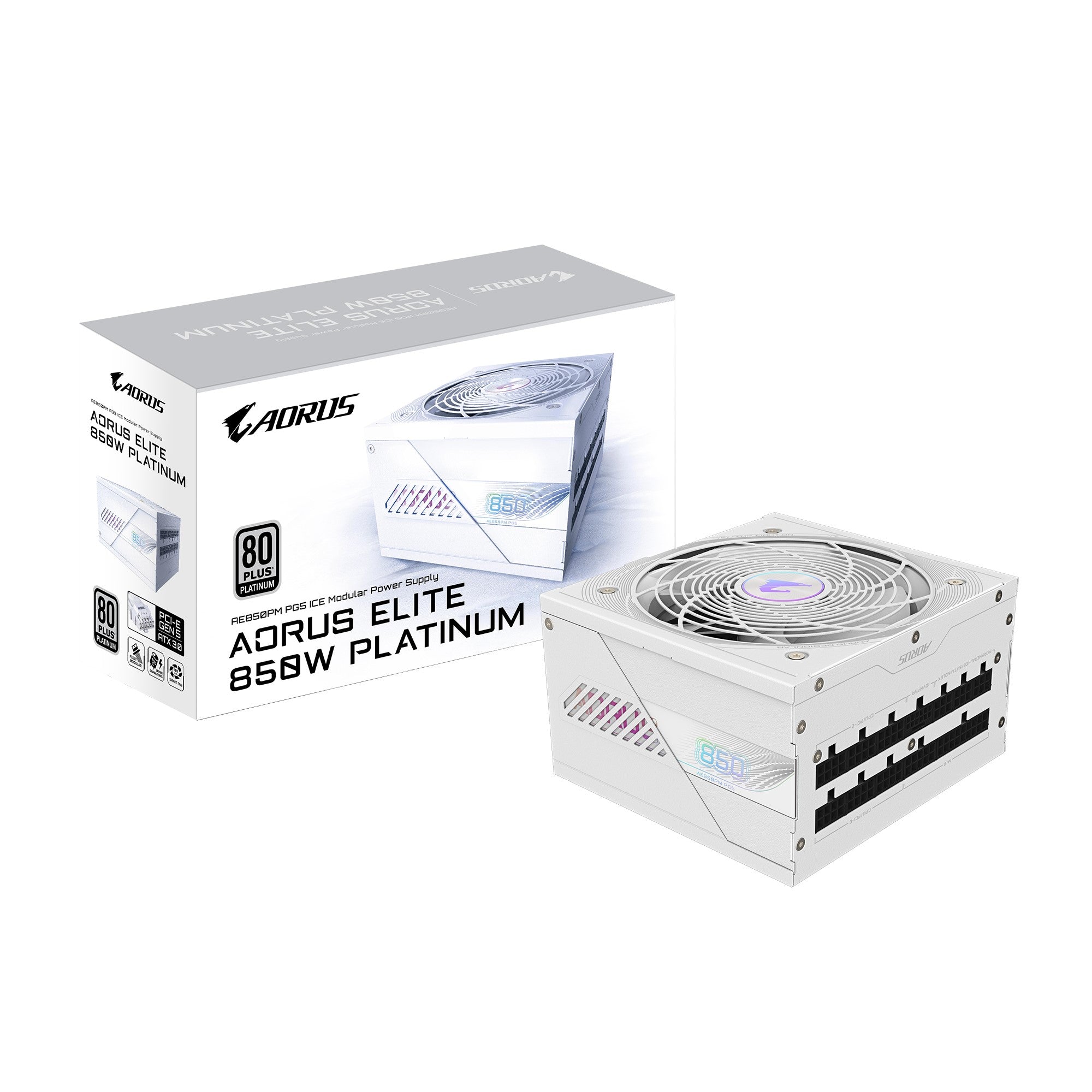

Gigabyte GP-AE850PM PG5 ICE 850W PSU Power Supply, ATX 60-50 Hz 850W 120mm Fan 80 PLUS Platinum >100,000 hours

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• ATX 60-50 Hz 850W 120mm Fan 80 PLUS Platinum >100
• 000 hours
• Product SKU: PSG-GP-AE850PMPG5ICE

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

Gigabyte GP-AE850PM PG5 ICE 850W PSU Power Supply, ATX 60-50 Hz 850W 120mm Fan 80 PLUS Platinum

Model GP-AE850PM PG5 ICE

Type Intel Form Factor ATX 12V v3.0

PFC Active PFC (>0.9 typical)

Input Voltage 100-240 Vac (full range)

Input Current 12-6A

Input Frequency 60-50 Hz

Output Capacity 850W

Dimension 150 x 140 x 86mm

Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan

80 PLUS Platinum

Efficiency 92% at typical load

MTBF >100,000 hours

Protection OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal 100-150ms

Hold Up Time >16ms

Cable Type Flat, All white

Connectors

ATX/MB 20+4 Pin x 1 : 650mm*1

CPU/EPS 4+4 Pin x 2 : 700mm*2

PCI-e 16 Pin x 1: 700mm*1

PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2

SATA x 8 : 600mm+150mm+150mm+150mm*2

4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.

* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.

* All trademarks and logos are the properties of their respective holders.

* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
