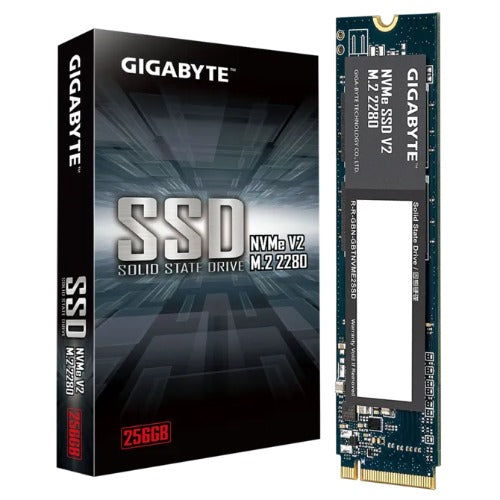

Gigabyte Gen3 256GB NVMe PCIe 3.0 x4 M.2 2280 SSD, 3200MB/s Read, 1200MB/s Write, 1.5M Hours MTBF, 3-Year Warranty
Gigabyte Gen3 256GB NVMe PCIe 3.0 x4 M.2 2280 SSD, 3200MB/s Read, 1200MB/s Write, 1.5M Hours MTBF, 3-Year Warranty
Product details
Compare capacity, interface and physical size when choosing storage for a business device.
Quick comparison
- Capacity: 256GB
- Interface: NVMe
- Form factor: M.2 2280
- Product SKU: HBG-G3NVMEV2256GM2256GB
Before you order
Confirm the drive interface and form factor suit your device. Check installation, drive migration and backup requirements before replacing storage.
Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.
Full product details
GIGABYTE Gen3 256GB NVMe PCIe 3.0 x4 M.2 2280 SSD, 3200MB/s Read, 1200MB/s Write, 1.5M Hours MTBF, 3-Year Warranty
Specification
Interface
PCI-Express 3.0 x4, NVMe 1.4
Form Factor
M.2 2280
Total Capacity
256GB
NAND
3D TLC NAND Flash
External DDR Cache
N/A
Sequential Read speed
Up to 3,200 MB/s
Sequential Write speed
Up to 1,200MB/s
Dimension
80 x 22 x 2.3 mm
Mean time between failure (MTBF)
1.5 million hours
Max. Operating Power
Read : 4.2W; Write : 3.0W
Power Consumption (Idle, PS3)
35mW
Power Consumption(PS4, L1.2)
5mW
Temperature (Operating)
0°C to 70°C
Temperature (Storage)
-40°C to 85°C
