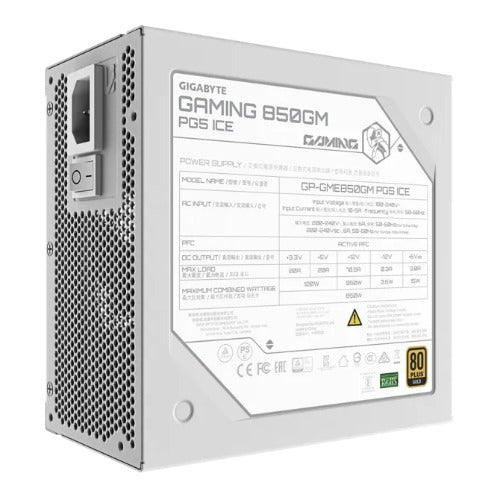

Gigabyte GAMING 850GM PG5 ICE 850W 80+ Gold ATX 3.1 PSU PCIe5 16pin FM 135mm fan 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 90eff 100k MTBF

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• Product: Gigabyte GAMING 850GM PG5 ICE 850W 80+ Gold ATX 3.1 PSU PCIe5 16pin FM 135mm fan 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 90eff 100k MTBF
• Product SKU: CFGP-GME850GMPG5ICE

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

GIGABYTE GAMING 850GM PG5 ICE 850W 80+ Gold ATX 3.1 PSU PCIe5 16pin FM 135mm fan 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 90eff 100k MTBF

Model

GP-GME850GM PG5 ICE

Type

Intel Form Factor ATX 12V v3.1

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac

Input Current

10-5A

Input Frequency

50-60 Hz

Output Capacity

850W

Dimensions

150 x 150 x 86mm

Fan Type

135mm FDB Fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protections

OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP

Power Good Signal

100-150ms

Hold Up Time

>17ms(80% load)

Cable Type

Embossed, All black

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 600mm*2

PCI-e 16 Pin x 1: 700mm*1

PCI-e 6+2 Pin x 4 : 600mm+150mm*2

SATA x 8 : 600mm+150mm+150mm+150mm*2

4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
