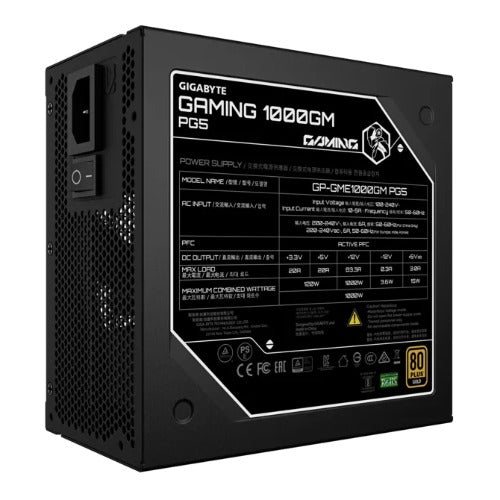

Gigabyte 1000GM PG5 1000W 80+ Gold ATX 3.1 PSU, PCIe 5.0, Full Modular

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• 000h MTBF
• Product SKU: CFGP-GME1000GMPG5

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

GIGABYTE GAMING 1000GM PG5 1000W 80+ Gold ATX 3.1 PSU PCIe 5.0 16pin full modular 135mm fan OVP OPP SCP UVP OCP OTP 8SATA 4PCIe 2EPS 100,00h MTBF

Model

GP-GME1000GM PG5

Type

Intel Form Factor ATX 12V v3.1

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

12-6A

Input Frequency

60-50 Hz

Output Capacity

1000W

Dimensions

150 x 150 x 86mm

Fan Type

135mm FDB Fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protections

OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP

Power Good Signal

100-150ms

Hold Up Time

>17ms (80% load)

Cable Type

Embossed, All black

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 600mm*2

PCI-e 16 Pin x 1: 700mm*1

PCI-e 6+2 Pin x 4 : 600mm+150mm*2

SATA x 8 : 600mm+150mm+150mm+150mm*2

4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
