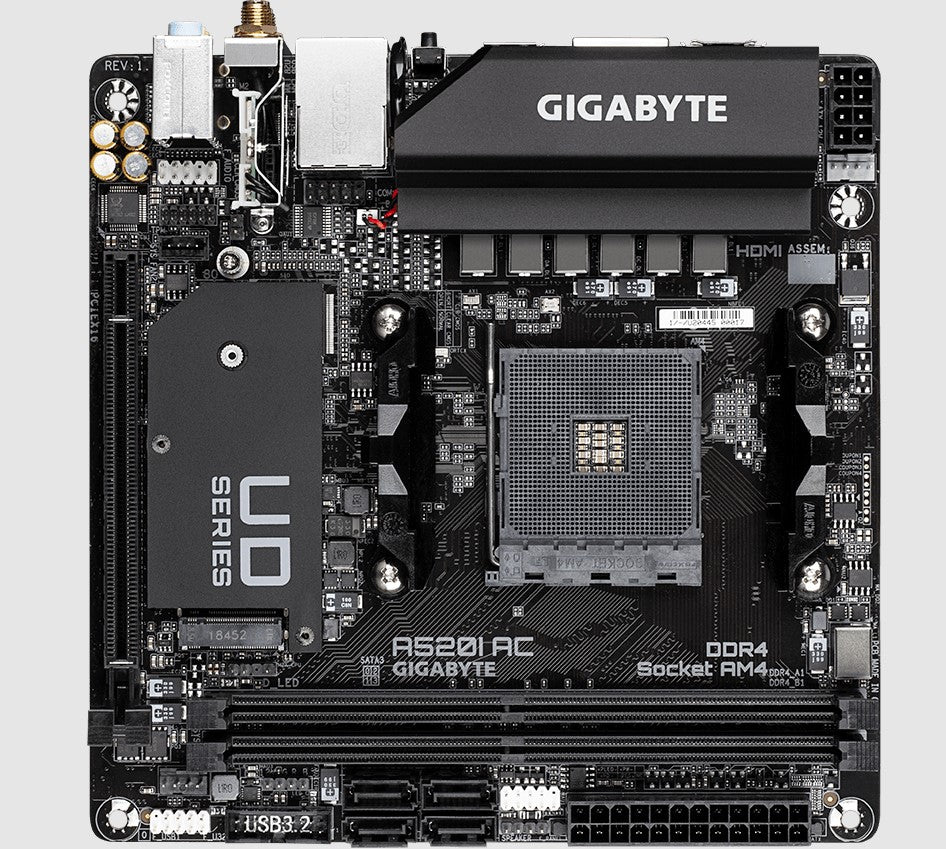

Gigabyte A520I AC AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard Intel 802.11ac WIFI, PCIe 3.0 x4 M.2

Product details

Compare the processor socket, supported memory and expansion connections for your system build.

Quick comparison

• Onboard Intel 802.11ac WIFI
• PCIe 3.0 x4 M.2
• Product SKU: MBG-A520IAC1.4

Before you order

Confirm CPU generation and BIOS support, memory compatibility, case size and power connections. Supported maximum capacity is not installed memory.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

Gigabyte A520I AC AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard Intel 802.11ac WIFI, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus

Supports 3rd Gen AMD Ryzen™ Processors

Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs

Direct 6 Phases Digital VRM Solution with 55A DrMOS

Ultra-Fast NVMe PCIe 3.0 x4 M.2

Onboard Intel® Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable™ Antenna

GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management

DisplayPort, Dual HDMI for for Multiple Display

RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support

Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

CPU — Type — Socket AM4

Vendor — AMD

Speed Support — AM4 series

L2/L3 Cache Size — Embedded in CPU

Chipset — North Bridge — A520

Flash ROM — 256Mb x1

Super IO — ITE 8688

Heatsink/Heatpipe — Heatsink for main chip

Memory — Socket — 2 DIMM

Frequency — DDR4, 3200

Type — 2-CH DDR4

Serial ATA — Controller — Integrated in main chip

Spec — SATA 6Gb/s

RAID or SCSI — Controller — Integrated in main chip

Spec — RAID 0/1/10

Graphics — Interface — PCI-E 3.0 x16

Controller — Integrated in CPU

VRAM size (optional) — Share 16GB(Max.)

Driect X support — DirectX 12

Audio — Codec — Realtek ALC887

Channel — 7.1 channel

LAN — Controller — Realtek 8118

Spec — GbE

USB — Controller — Integrated in main chip/Integrated in CPU

Spec — USB 3.2 GEN1/USB 2.0

Power Management — Power Connector — ATX 2*12 PIN/ATX 12V 2*4 PIN

PCB — Form Factor — Mini-ITX

Layer — 8-lay

2oz Copper PCB — N/A

Size (D x W) — 170x170mm

Color — Dark Brown

Expansion — PCI Express x1 slot — N/A

PCI Express x16 slot — YES, 1

M.2 — Yes/ socket 1 for WIFI, 1/Yes/ socket 3 for SSD (PCIe & SATA mode), 1

Other Features — AORUS — N/A

Packing — SATA cable — YES, 2

Color Box Size — mini ITX 一體成形(222x189x78mm)

WIFI — Controller — Intel 1x1 AC3168
