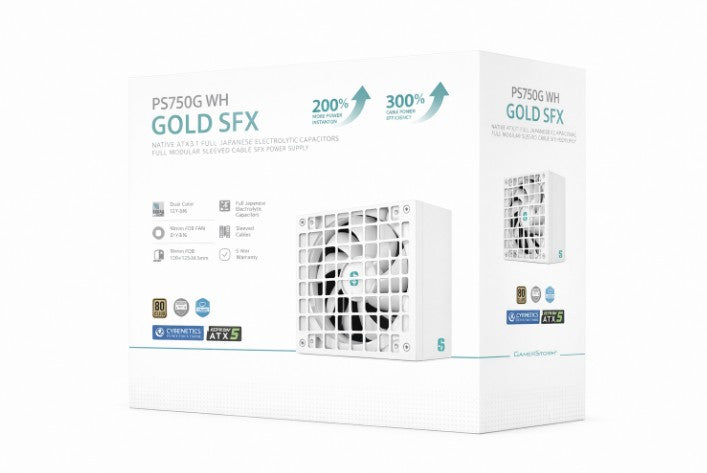

DeepCool PS750G WH 750W SFX Power Supply, Cybenetics Platinum

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• Full Japanese Electrolytic Capacitors
• Cybenetics Platinum /PPLP Gold
• Fluid Dynamic Bearing
• Product SKU: PSD-PS750G-WH

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

DeepCool PS750G WH

Technical Spec

Model — PS750G WH

Model No — PS750G-FE

Total Output — 750W

Type — SFX12V V4.1 & ATX12V V3.1

Product Dimensions — 125×100×63.5mm (W x L x H)

Efficiency certification — Cybenetics Platinum /PPLP Gold

Fan Size — 92x92x20mm (W x L x H)

Fan Bearing — FDB (Fluid Dynamic Bearing)

Topology — Active PFC + Half Bridge SRC LLC + DC to DC

Capacitors — Full Japanese Electrolytic Capacitors

Power Good Signal — 100-150ms

Hold Up Time — ≥16ms(80% Load)

Efficiency — ≥90% Under Typical Load(50% Loading)

Protection — OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

Operation Temperature — 0~40°C

Regulatory — CE/CCC/TUV-RH/KC/RCM/CAN ICES(B)/NMB(B)/EAC

Erp Regulation — ErP 2014

Environment Protection — WEEE/中国 RoHS/Triman/EAC RoHS

MTBF — 100,000 Hours

Warranty — 5Years
