Corsair AIR 5400 LX-R RGB iCUE LINK Triple Chamber Mid-Tower PC Case - Black; ATX/E-ATX; 467x470x340mm; TG; 360GPU; 180CPU; 360RAD; USB-C

Product details

Choose by the exact device model, generation and size to ensure the right fit.

Quick comparison

• Product: Corsair AIR 5400 LX-R RGB iCUE LINK Triple Chamber Mid-Tower PC Case - Black; ATX/E-ATX; 467x470x340mm; TG; 360GPU; 180CPU; 360RAD; USB-C
• Product SKU: CAC-AIR5400LX-R-BK

Before you order

Confirm the full device model and generation before ordering. Similar screen sizes or product names do not guarantee compatibility.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

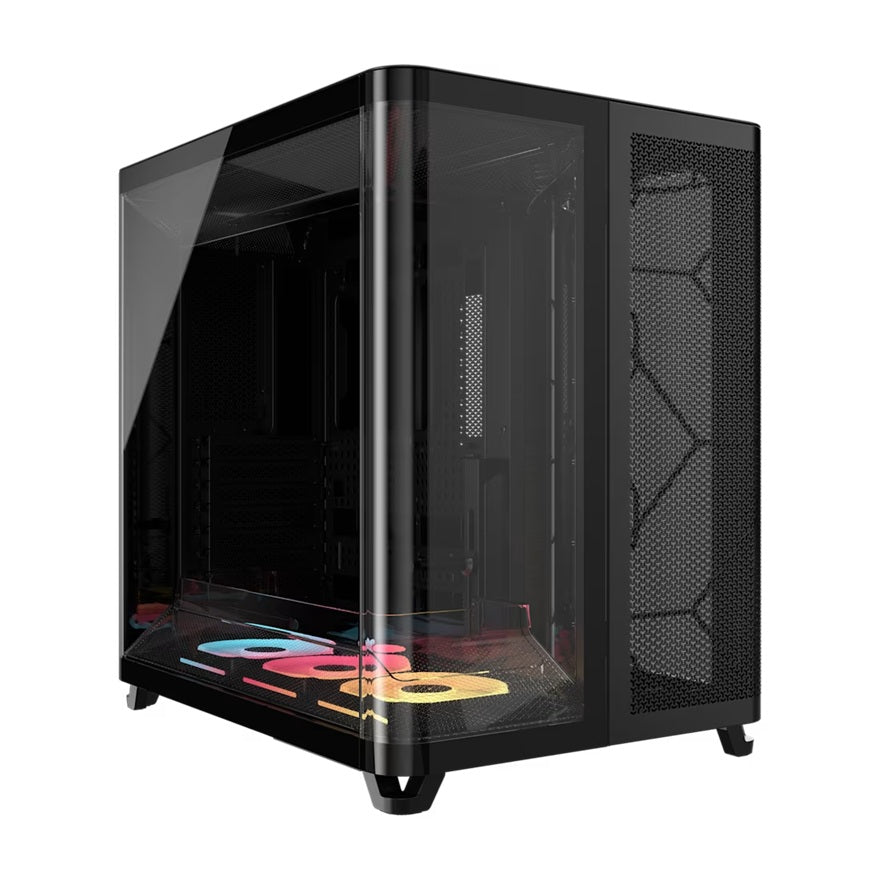

Corsair AIR 5400 LX-R RGB iCUE LINK Triple Chamber Mid-Tower PC Case - Black

•Triple-chamber design for peak thermal performance

•Dedicated chamber for CPU cooling

•Dual airflow ducts for powerful main chamber airflow

•Dual curved glass French door panels

•Compatible with reverse connector motherboards

•RapidRoute 2.0 cable management system

•3x iCUE LINK LX-R RGB 120mm reverse-rotor fans and System Hub

Tech Specs

Case Supported Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Case Height 467mm

Case Length 470mm

Case Width 340mm

Material Steel, Tempered Glass

Color BLACK

Case Size Mid-Tower

Radiator Compatibility 120mm, 240mm, 360mm

Case Window Tempered Glass

Compatible Liquid Coolers H60, H100, H115, H150, NAUTILUS, TITAN

Case Warranty 2 Year

Internal 3.5' Drive Bays 1

Internal 2.5' Drive Bays 2

Maximum CPU Cooler Height 180mm

Maximum PSU Length 200mm

Case Front IO (1x) USB 3.2 Gen 2x2 Type-C, (2x) USB 3.2 Gen 1 Type-C, (1x) Audio in/out

Maximum GPU Length 360mm

Weight 16.7kg

Case Expansion Slots 7 Horizontal

Case Power Supply ATX

Radiator Support - Top 360mm

Radiator Support - Front 360mm, 240mm

Radiator Support - Bottom 360mm, 240mm

Radiator Support - Side None

Radiator Support - Rear 120mm

Fan Support - Top 3x 120mm

Fan Support - Front 3x 120mm

Fan Support - Bottom 3x 120mm

Fan Support - Side None

Fan Support - Rear 1x 120mm

Front IO Motherboard Connections 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2x2 Type-E; 1x F_PANEL

Reverse Connector Motherboard Support Yes

Included Fans iCUE LINK LX-R RGB

Dust Filtration Yes

Cable Routing Space 134mm

RapidRoute Included Yes

Left Side Panel Tempered Glass

Right Side Panel Steel

Vertical Mount Support Unsupported
