Brateck LDT86S-C048S Quad Monitor Arm, Sliders, 17 to 40-inch, 11kg

Product details

Compare mounting compatibility, size range and load limits for your workspace.

Quick comparison

• from 17-inch-40-inch
• weight capacity (per flat screen) 11kg
• 180° Rotation
• Product SKU: MABT-LDT86S-C048S-BLK

Before you order

Confirm the device’s mounting pattern and weight, plus the desk or wall fixing requirements. Check the listed compatibility before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

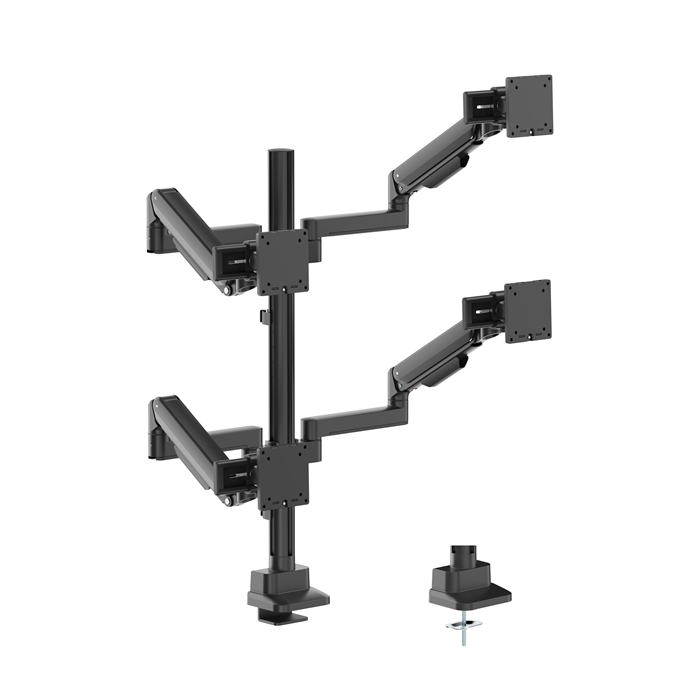

Brateck Modular Mechanical Spring Quad Monitor Arm with Sliders, from 17'-40', weight capacity (per flat screen) 11kg, 180° Rotation (Black)

Combine exceptional quality with innovative design. The one-way bearing mechanism and one-touch height adjustment ensure smooth, effortless monitor positioning, while precision sliders deliver seamless alignment of monitors. Installation is quick and hassle-free thanks to the user-friendly quick-release VESA plate and top-mount base. Crafted from premium materials and available in three colors, it provides a high-performance solution that enhances both functionality and aesthetics in any workspace.

FEATURES

●One-Way Bearing Head Tilting Structure: eliminates friction when tilting for effortless adjustment

●Quick-Release VESA Plate: for easy installation and removal

●Universal Sliders: allow the monitors at a proper ergonomic distance

●Installs from Top Side: installs entirely from above the desk surface

●Wide Range of Movements: allows screen tilting, swiveling, rotation and height adjustments for optimum viewing

●Built-in Cable Management: for an organized and neat workspace

SPECIFICATIONS

Product Category: — Mechanical Spring Monitor Arm

Rank: — Super Premium

Material: — Aluminum,Steel,Plastic

Surface Finish: — Paint Spraying

Color: — Black

Dimensions: — 1378x136x1225mm (54.3'x5.4'x48.2')

Fit Screen Size: — 17'-40'

Fit Curved Monitor: — Yes

Screen Quantity: — 4

Weight Capacity (per screen): — 2-11kg (4.4lbs-24.2lbs)

Weight Capacity for Curved Screen (per screen): — 2~10kg (4.4lbs~22lbs)

VESA Compatible: — 75x75,100x100

Tilt Range: — +75°~-45°

Swivel Range: — +90°~-90°

Screen Rotation: — +180°~-180°

Arm Full Extension: — 611mm (24.1')

Pole Height: — 900mm (35.4' )

Installation: — Clamp,Grommet

Suggested Desktop Thickness: — Clamp:10~50mm Grommet:10~50mm (Clamp:0.39'~2' Grommet:0.39'~2')

Quick Release VESA Plate: — Yes

Cable Management: — Yes

Accessory Kit Package: — Normal/Ziplock Polybag
