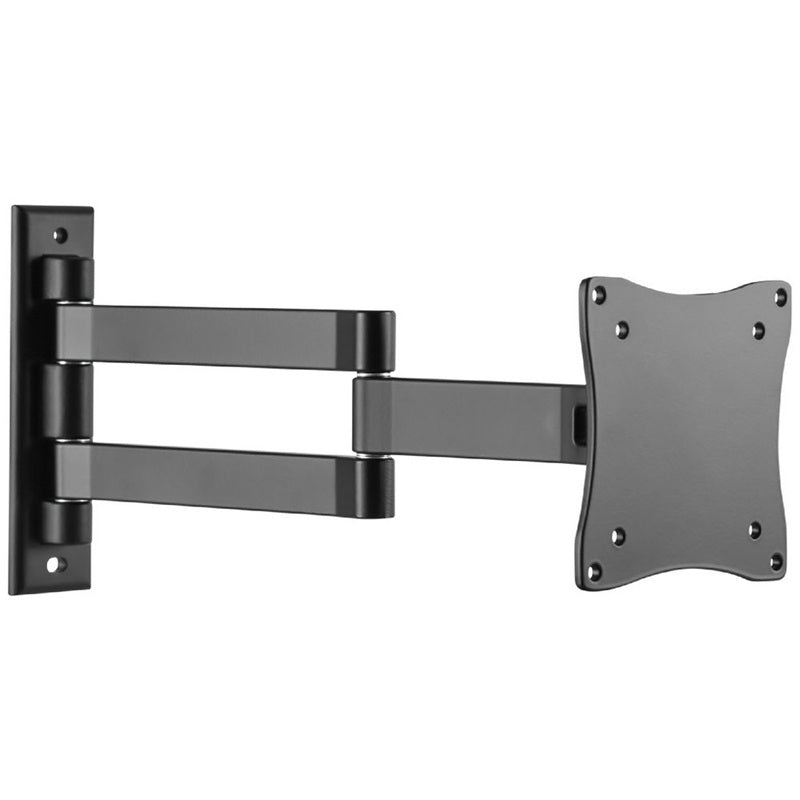

Brateck Aluminum Articulating TV Wall Mount, 13–27-inch, 15kg Capacity, VESA 75x75/100x100, Full Motion, ±70° Tilt, ±90° Swivel, 50–372mm Extension
Brateck Aluminum Articulating TV Wall Mount, 13–27-inch, 15kg Capacity, VESA 75x75/100x100, Full Motion, ±70° Tilt, ±90° Swivel, 50–372mm Extension
Product details
Compare mounting compatibility, size range and load limits for your workspace.
Quick comparison
- Mounting pattern: VESA 75x75/100x100
- 13–27-inch
- 15kg Capacity
- VESA 75x75/100x100
- Full Motion
- Product SKU: MABT-LCD-101G
Before you order
Confirm the device’s mounting pattern and weight, plus the desk or wall fixing requirements. Check the listed compatibility before ordering.
Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.
Full product details
Brateck Aluminum Articulating TV Wall Mount, 13–27', 15kg Capacity, VESA 75x75/100x100, Full Motion, ±70° Tilt, ±90° Swivel, 50–372mm Extension
The popular model LCD-101G is designed to fit any 13’’-27’’ Flat Panel TV up to 15kgs/33lbs. Freely tilting allows easy TV angle adjustment of 70° up and down. Elegant Aluminum Arm can be extended to 372mm for maximum viewing flexibility and is light weight for transportation. VESA compatible with 50x50, 75x75, 100x100.
FEATURES
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Lightweight Aluminum Construction: provides a sleek, lighter, and elegant look
SPECIFICATIONS
Product Category: — Full-Motion TV Wall Mount
Rank: — Standard
Material: — Aluminum
Surface Finish: — Powder Coating
Color: — Matte Black
Dimensions: — 372x170x114mm (14.6'x6.7'x4.5')
Fit Screen Size: — 13'-27'
Fit Curved TV: — No
Mounting Hole Pattern: — VESA Only
VESA Compatible: — 75x75,100x100
Max. Mounting Hole: — 100x100
Weight Capacity: — 15kg (33lbs)
Strength Tested: — 3 Times Approved
Profile: — 50~372mm (2'~14.6')
Tilt Range: — +70°~-70°
Swivel Range: — +90°~-90°
Screen Freely Tilting: — Yes
Installation: — Solid Wall,Single Stud
Panel Type: — Fixed Panel
Wall Plate Type: — Fixed Wall Plate
Cable Management: — No
Anti-theft: — No
Bubble Level: — No
