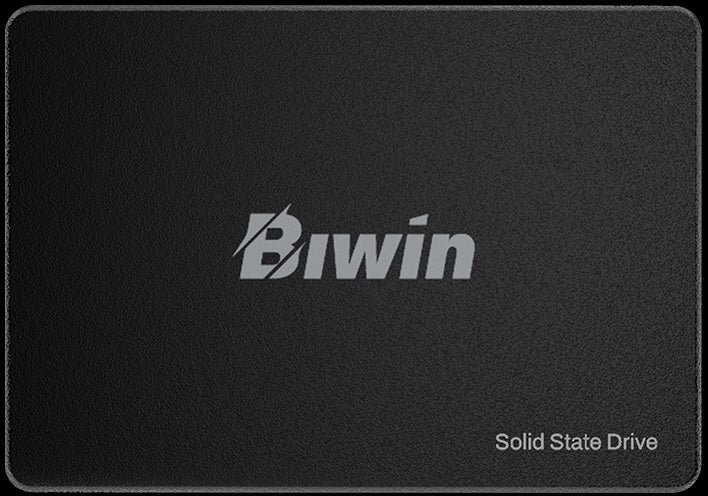

BIWIN M100-512G SATA 2.5 up to 550MB/s 500MB/s BM100NN512G-RGX - 3-Year Warranty

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• Product: BIWIN M100-512G SATA 2.5 up to 550MB/s 500MB/s BM100NN512G-RGX - 3-Year Warranty
• Product SKU: BIW-M100-512G

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

BIWIN M100-512G SATA 2.5 up to 550MB/s & 500MB/s BM100NN512G-RGX - 3-Year Warranty

Series

Biwin

Category

Solid State Drives

Model Name

Biwin M100

Form Factor

2.5''

Interface

SATA III

DRAM Cache

DRAM-less

Capacity

128 GB, 256 GB, 512 GB, 1 TB, 2 TB

Sequential Read (Up to)

500 MB/s, 550 MB/s, 550 MB/s, 550 MB/s, 550 MB/s

Sequential Write (Up to)

450 MB/s, 470 MB/s, 480 MB/s, 500 MB/s, 500 MB/s

Random Read 4K (Up to)

30K IOPS, 60K IOPS, 60K IOPS, 80K IOPS, 70K IOPS

Random Write 4K (Up to)

60K IOPS, 60K IOPS, 60K IOPS, 70K IOPS, 70K IOPS

Dimensions

100.00 x 77.00 x 6.70 mm

Weight

< 50 g

Operating Temperature

0°C to +70°C

Storage Temperature

-40°C to +85°C

MTBF

1,500,000 hours

Certifications

RoHS, FCC, CE, CB, KCC, BSMI, VCCI, RCM, UKCA

Warranty

3-Year / 40 TBW, 3-Year / 80 TBW, 3-Year / 160 TBW, 3-Year / 320 TBW, 3-Year / 640 TBW
