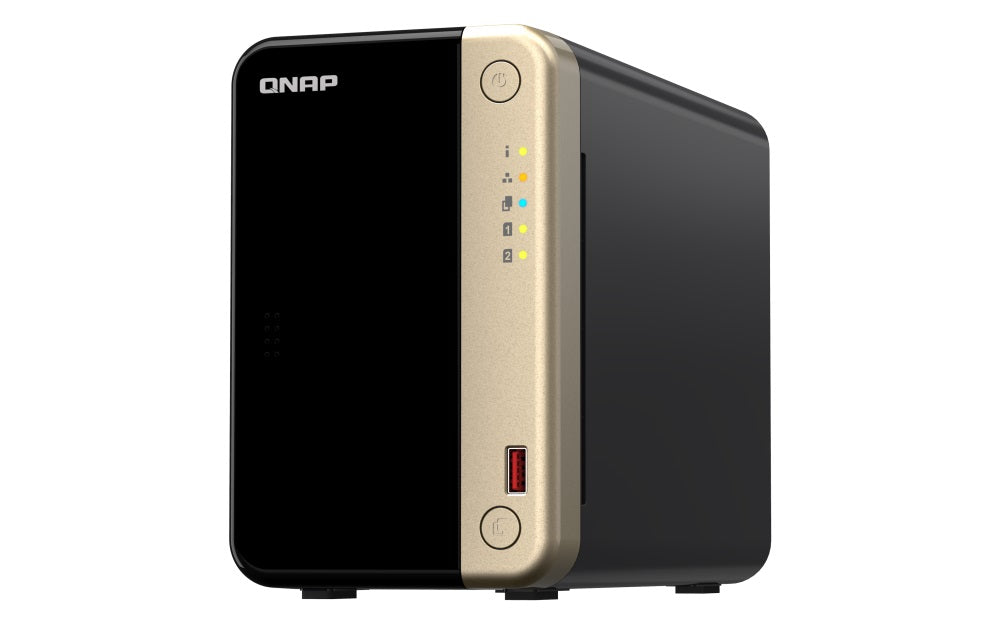

QNAP TS-264-8G 2 Bay desktop NAS 8 GB DDR4 onboard not expandable 2 x 3.5-inch/2.5-inch SATA 6Gb/s drive bays 2 x M.2 2280 PCIe Gen 3 x1 slots 2 x 2.5GbE

Product details

Compare drive bays, network connections and expansion requirements for shared business storage.

Quick comparison

• Drive bays: 2 Bay
• Listed network standard or speed: 2.5GbE
• Product SKU: BAQN-TS-264-8G

Before you order

Confirm compatible drives and which drives are included. Plan installed capacity, RAID and a separate backup strategy before deployment.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

QNAP TS-264-8G 2-Bay desktop NAS, Intel® Celeron® N5105/N5095 quad-core, 8 GB DDR4 onboard not expandable, 2 x 3.5'/2.5' SATA 6Gb/s drive bays, 2 x M.2 2280 PCIe Gen 3 x1 slots, 2 x 2.5GbE, 1 x HDMI 2.0, 1 x PCIe Gen3 x2 slot, 2 x USB 3.2 Gen 2 Type-A + 2 x USB 2.0

TS-264 is a compact 2-bay NAS with superior performance. Supporting up to 22 TB storage and 4 TB M.2 SSD caching* at an affordable price, the TS-264 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.

CPU — Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz

CPU Architecture — 64-bit x86

Graphic Processors — Intel® UHD Graphics

Floating Point Unit

Encryption Engine — (AES-NI)

Hardware-accelerated Transcoding

System Memory — 8 GB RAM

Maximum Memory — 8 GB

Flash Memory — 4GB (Dual boot OS protection)

Drive Bay — 2 x 3.5-inch SATA 6Gb/s

The system is shipped without HDD.

For the HDD compatibility list, please visit https://www.qnap.com/compatibility/

Drive Compatibility — 3.5-inch SATA hard disk drives

2.5-inch SATA solid state drives

Hot-swappable

M.2 Slot — 2 x M.2 2280 PCIe Gen 3 x1

Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility.

SSD Cache Acceleration Support

2.5 Gigabit Ethernet Port (2.5G/1G/100M) — 2 (2.5G/1G/100M/10M)

5 Gigabit Ethernet Port (5G/2.5G/1G/100M) — Optional via PCIe expansion card

10 Gigabit Ethernet Port — Optional via PCIe expansion card

Wake on LAN (WOL)

Jumbo Frame

PCIe Slot — 1

Slot 1: PCIe Gen 3 x2

Card dimensions for PCIe slot：190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches.

USB 2.0 port — 2

USB 3.2 Gen 2 (10Gbps) Port — 2 x Type-A

IR Sensor — (Optional QNAP RM-IR004 remote control)

HDMI™ Output — 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz)

Form Factor — Tower

LED Indicators — Power/Status, LAN, USB, HDD1-2

Buttons — Power, USB copy, Reset

Dimensions (HxWxD) — 165 × 105 × 226.5 mm (not include foot pad)

Standard Warranty — 3
