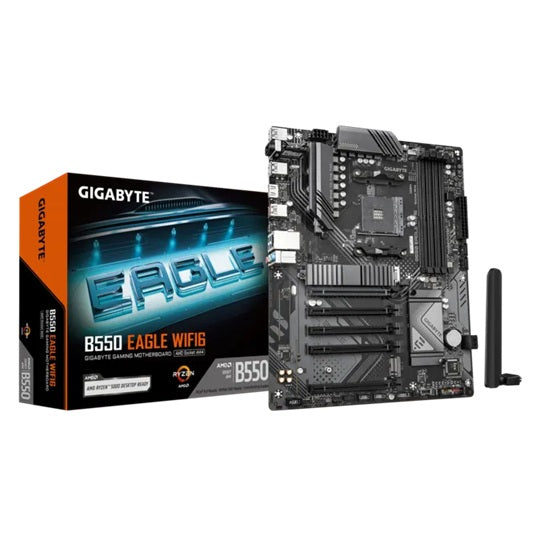

B550 EAGLE WIFI6 AMD ATX motherboard with AM4 support, Ryzen 3000–5000 CPUs, DDR4 up to 128GB, PCIe 4.0, dual M.2, Wi-Fi 6, Bluetooth 5.3 HDMI 2.1
B550 EAGLE WIFI6 AMD ATX motherboard with AM4 support, Ryzen 3000–5000 CPUs, DDR4 up to 128GB, PCIe 4.0, dual M.2, Wi-Fi 6, Bluetooth 5.3 HDMI 2.1
Product details
Compare the processor socket, supported memory and expansion connections for your system build.
Quick comparison
- Ryzen 3000–5000 CPUs
- DDR4 up to 128GB
- PCIe 4.0
- dual M.2
- Product SKU: MBG-B550EAGLEWIFI6
Before you order
Confirm CPU generation and BIOS support, memory compatibility, case size and power connections. Supported maximum capacity is not installed memory.
Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.
Full product details
B550 EAGLE WIFI6 AMD ATX motherboard with AM4 support, Ryzen 3000–5000 CPUs, DDR4 up to 128GB, PCIe 4.0, dual M.2, Wi-Fi 6, Bluetooth 5.3, HDMI 2.1
High-performance ATX motherboard powered by the AMD B550 chipset, designed for AMD Ryzen™ processors and modern connectivity.
Key Features:
AMD B550, ATX
•
Socket / CPU Support: AM4
•Ryzen 3000, 3000G, 4000G, 5000, 5000G
•
Chipset: AMD B550
•
Memory:
•
4× DDR4 DIMM, up to 128 GB
•
Dual-channel, 2133–3200 MT/s
•
XMP support, ECC & Non-ECC (unbuffered)
•Integrated Graphics:
•
AMD Radeon Graphics (CPU-dependent)
•
1× HDMI 2.1, up to 4K@60Hz
•Max shared memory: 16 GB
•Expansion Slots:
•1× PCIe x16
•PCIe 4.0 (Ryzen 3000/5000)
•PCIe 3.0 (G-Series)
•4× PCIe 3.0 x1
•
Storage:
•
2× M.2 (PCIe 4.0/3.0, CPU-dependent)
•
4× SATA 6Gb/s
•
RAID 0 / 1 / 10 (NVMe & SATA)
•Networking:
•Realtek Gigabit LAN
•Wi-Fi 6, Bluetooth 5.3
•Audio:
•
Realtek HD Audio, up to 7.1-channel
•
USB:
•USB-C (rear & header)
•USB 3.2 Gen 2 / Gen 1
•USB 2.0
•
Internal Headers:
•
24-pin ATX, 8-pin CPU power
•
CPU fan + pump header, 3× system fan
•RGB & ARGB headers
•
TPM header, Clear CMOS jumper
•Back Panel I/O:
•HDMI
•USB-C, USB 3.2, USB 2.0
•RJ-45 LAN
•
Audio jacks
•Q-Flash Plus button
•BIOS:
•AMI UEFI, 128 Mbit flash
•
Q-Flash & Q-Flash Plus
•OS Support: Windows 10 / 11 (64-bit)
•
Form Factor: ATX – 30.5 × 24.4 cm
