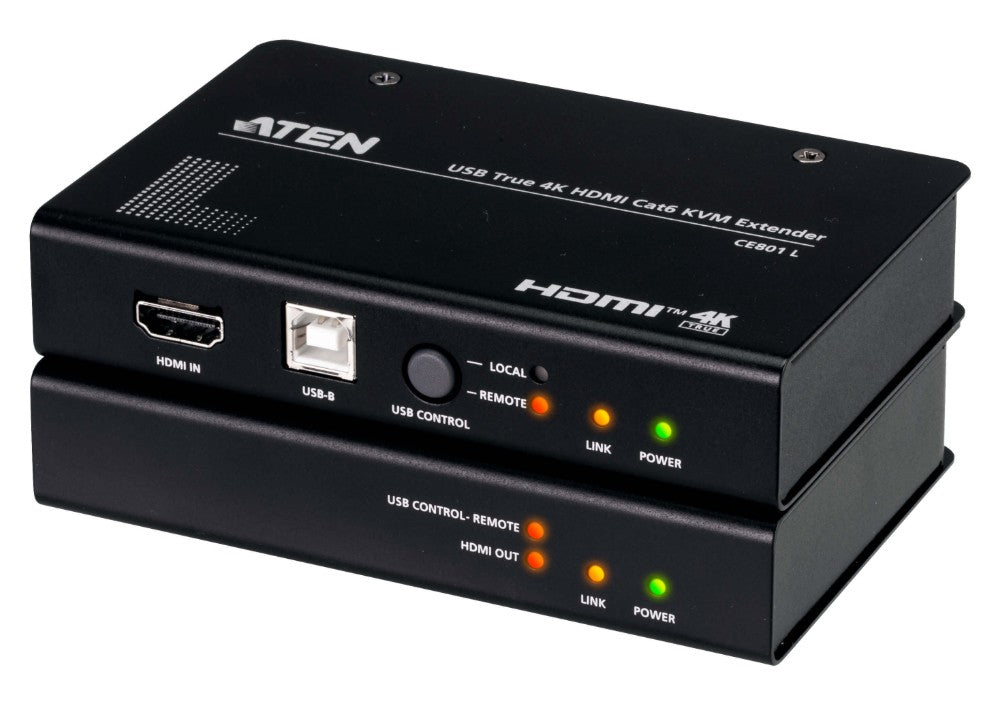

ATEN USB True 4K HDMI Cat 6 KVM Extender (4K @ 70 m)

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• Product: ATEN USB True 4K HDMI Cat 6 KVM Extender (4K @ 70 m)
• Product SKU: KVA-CE801-AT-U

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

CE801 is an extender kit that allows for sharp, life-like True 4K (3840 x 2160 @ 60 Hz 4:4:4) HDMI, RS-232, and USB transmission across 70 m over one single Cat 6 cable. Dual console USB Keyboard / Mouse operation is enabled by the USB control mode pushbutton switching USB console control privilege between the remote and local units. RS-232 extension capability facilitates uninterrupted communication between serialinterfaced devices and equipment, which are crucial in industrial control systems.

CE801 is ideal for medium to large scale applications where incredibly sharp and detailed visualization, multisignal extension, and privileged USB control via local / remote console are essential, including control centers, retail shops, factories, medical facilities, and home theaters.

Extends HDMI video, USB keyboard/mouse control, embedded audio, and RS-232 control signals across 70 m over a Cat 6 cable

Long reach mode – 1080p extension up to 100 m

Supports resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) with HDCP 2.2 / 2.3 compliance

Dual console USB keyboard / mouse operation - control privilege between the remote and local units switchable via USB control mode pushbutton

Supports HDR 10 for enhanced video quality

Supports wide screen format

Supports digital audio formats such as 7.1ch Dolby and DTS audio

Plug-and-play with no software or driver required

Built-in 8KV/15KV ESD protection

Rack-mountable

DC Jack with screw-lock ensures stable and secure connection

Package Contents

1 x CE801L USB True 4K HDMI Cat 6 KVM Extender (Local Unit)

1 x CE801R USB True 4K HDMI Cat 6 KVM Extender (Remote Unit)

1 x USB Type-A to USB Type-B cable

2 x mounting kits

1 x foot pad set (8 pcs)

2 x power adapters

1 x user instructions
