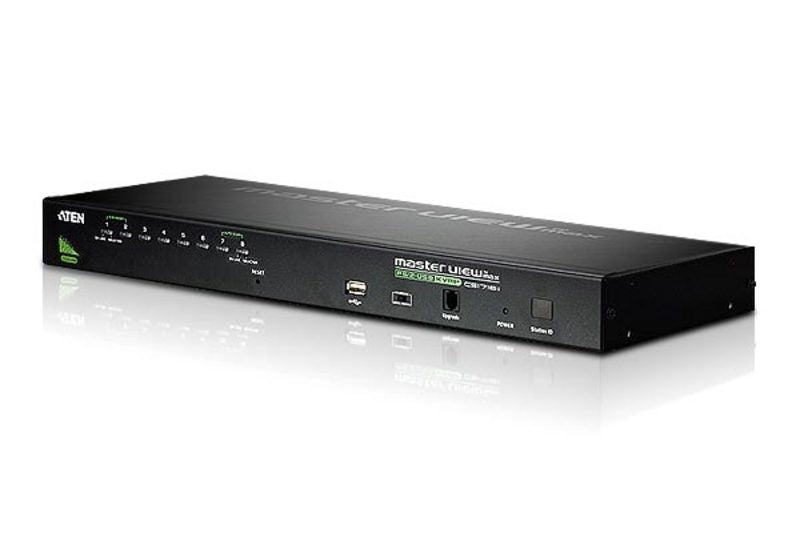

Aten Rackmount KVM Switch 8 Port VGA PS/2-USB, 2x Custom KVM Cables Included, Broadcast Mode, Daisy Chainable for up to 256 Devices

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 8 Port
• 2x Custom KVM Cables Included
• Broadcast Mode
• Daisy Chainable for up to 256 Devices
• Product SKU: KVA-CS-1708A

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

The CS1708A KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1708A can control up to 8 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 256 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.

One USB-PS/2 console controls up to 8 computers

Daisy-chain up to 31 additional units - control up to 256 computers from a single console

Front accessible USB port allows each computer to access USB peripherals *

Dual Interface - supports computers and console with PS/2 or USB keyboards and mice

Multiplatform support - Windows, Linux, Mac and Sun

Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution

Supports USB keyboards for PC, Mac and Sun

Auto PS/2 and USB interface detection

USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere

Superior video quality - up to 2048 x 1536; DDC2B

No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus

Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position

Port names automatically reconfigured when station sequence is changed

Two level password security; only authorized users view and control computers; up to four users and an administrator with separate profiles for each

Auto Scan feature for monitoring user-selected computers

Broadcast Mode - operation simultaneously performed on all selected computers... etc

Hot pluggable - add or remove computers without having to power down the switch

Buzzer on/off via hotkey and OSD
