Aten Rackmount Dual Rail LCD Console VGA PS/2-USB w/ 19-inch LCD Display, 1x Custom KVM Cable Included, 1280x1024@75hz Display, LED Illumination

Product details

Compare the connector types, cable length and supported interface with your equipment.

Quick comparison

• 1x Custom KVM Cable Included
• 1280x1024@75hz Display
• LED Illumination
• Product SKU: KVA-CL-5800NA

Before you order

Check both ends of the connection, required cable length and any bandwidth or power requirements. Confirm whether an active adapter is needed.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

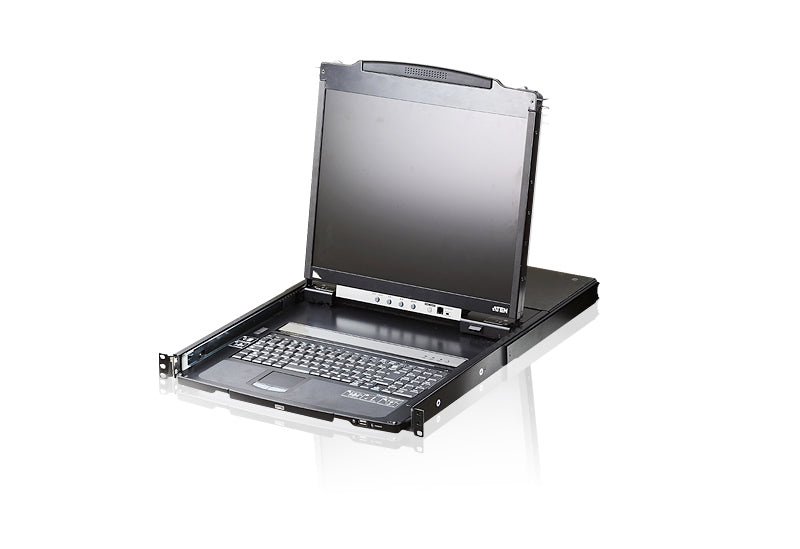

The CL5800 is a LCD KVM console featuring an integrated 19' LED-backlit LCD panel, a full keyboard, and a touch pad in a 1U rack-mountable sliding housing.

The CL5800's LCD and keyboard/touch pad modules slide independently of each other. To maximize space in your data center, the keyboard/touch pad module slides back to 'hide away' when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity.

For added convenience, ports for an external PS/2 or USB keyboard and mouse as well as a monitor are provided on the rear panel.

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

Integrated KVM console with a 19' LED-backlit LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack

Standard rack mount kit included

Supports an external console* with either PS/2 or USB connectors

Dual interface - Supports computers and KVM switches with PS/2 or USB keyboards and mice

Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)

Embedded power supply

High video resolution:

• Up to 1280 x 1024 @75Hz

• Supports DDC, DDC2, DDC2B

• DDC emulation of the LCD monitor

• Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor

Standard 105-key keyboard; Sun keyboard emulation

Dual rail design allows LCD monitor and keyboard/touch pad modules to operate independently

Firmware upgradeable

Supports Microsoft Intellimouse (5 keys)

Supports Logitech and Microsoft wireless mice

Optional rack mount kits available including easy installation options

Console lock - enables the console drawer to remain securely locked away in position when not in use
