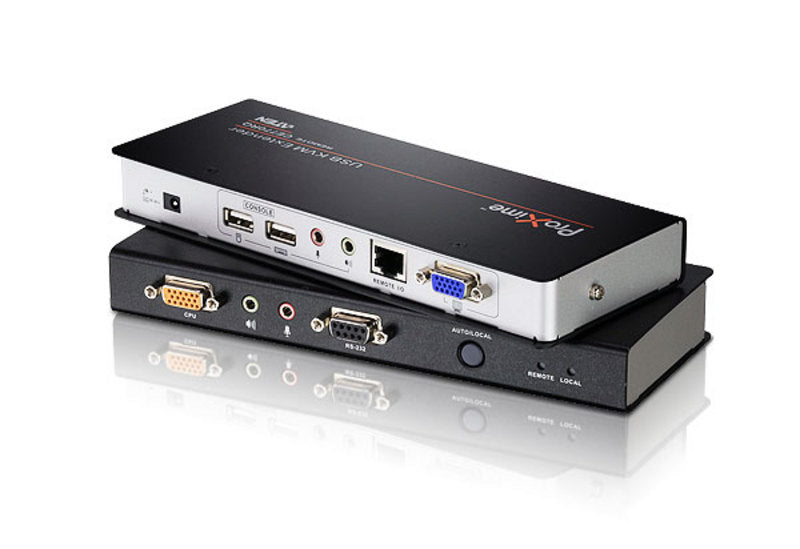

Aten KVM Extender Kit VGA/Audio Cat 5 Extender With Deskew, 1920x1200@60Hz 150m, 1280x1024@60Hz 300m

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• 1920x1200@60Hz 150m
• 1280x1024@60Hz 300m
• Product SKU: KVA-CE-770

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

•Local and Remote Units connect at distances up to 300 m using Cat 5e cable

•Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles

•Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance

•Built-in ASIC for greater reliability and compatibility

•Auto Signal Compensation (ASC)

•RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners

•Sun/Mac keyboard support and emulation*

•Audio Enabled - supports stereo speakers and microphone

•USB overcurrent detection and prevention

•Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button

•Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection

•High resolution video - up to 1920 x 1200@60Hz (150 m); 1280 x 1024@60Hz (300 m)

•Superior Audio - no loss in audio quality at 300 m

•Spports Wide Screen formats

•Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B

•Hot pluggable

•Rack mountable

•Easy to install - no software required - connecting cables to the devices is all it takes

*1. PC keyboard combinations emulate Sun/Mac keyboards

*2. Sun/Mac keyboards only work with their own computers

Compatible Cables: 2L-5301U, 2L-5302U, 2L-5303U, 2L-5304U, 2L-5305U, 2A-130G
