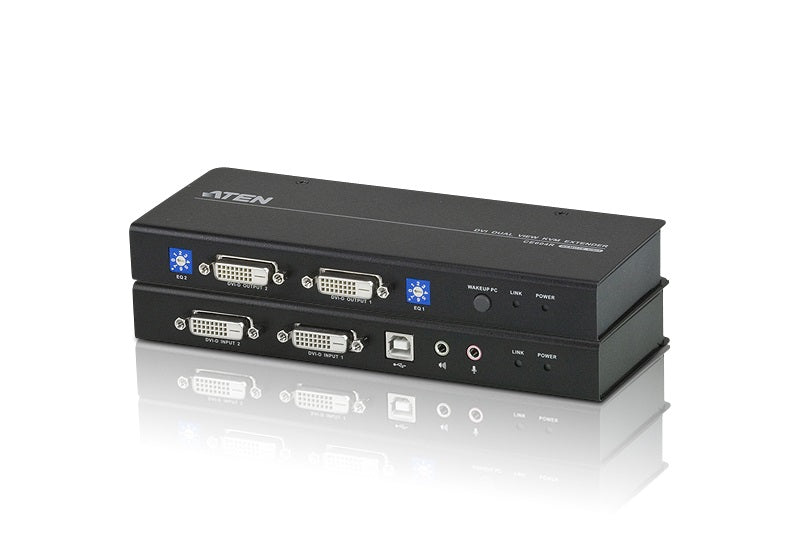

Aten DVI Dual View KVM Extender with Audio, RS232, EDID mode support, Sun/Mac KB/MS support

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• RS232
• EDID mode support
• Sun/Mac KB/MS support
• Product SKU: KVA-CE-604

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

•Local and Remote Units connect at distances up to 60 m using two Cat 5e cables

•Transmit speaker, keyboard, mouse, DDC and one DVI via one Cat5 cable; RS-232, microphone and another DVI by adding a second Cat 5e cable

•Supports Dual View video source transmission (one PC with two video output ports)

•Audio Enabled – supports stereo speakers and microphone

•Supports Real DDC bypass and ATEN default EDID technology – set up various confi gurations via hotkeys

•Supports PC wakeup function via one pushbutton or hotkey

•RS-232 serial channel – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 9600 bps)

•Compatible with other ATEN Dual View KVM devices, such as CS1642A/ CS1644A and CS1762A/CS1764A

•Superior video quality – up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m

•Manual compensation control to adjust video signal quality in order to compensate for distance

•Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
