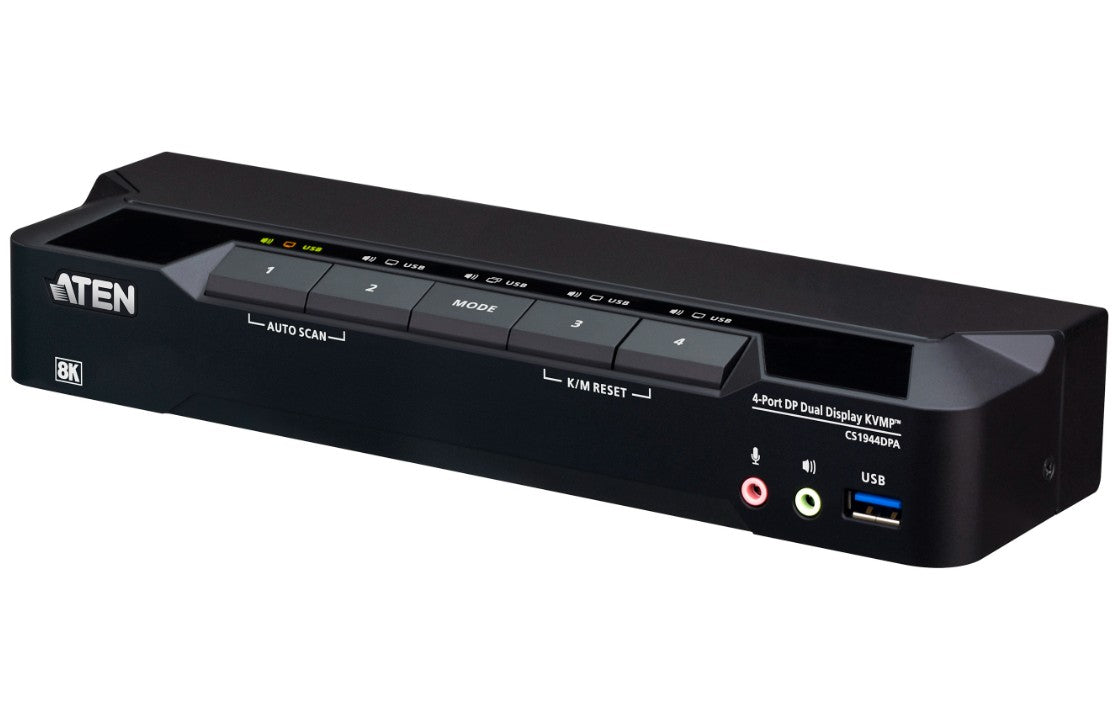

Aten Desktop 4-Port USB 3.0 8K DisplayPort Dual-Display KVMP™ Switch, Up to 7680 × 4320 @ 60 Hz, 5120 × 2880 @ 60 Hz (Cables included)

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 4-Port
• Up to 7680 × 4320 @ 60 Hz
• 5120 × 2880 @ 60 Hz (Cables included)
• Product SKU: KVA-CS1944DPA-AT-U

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

High-Performance Hardware and Display Capabilities

Supports Quad-Display by connecting two Dual-Display KVM switches

Superior video quality – up to 7680 × 4320 @ 60 Hz, 5120 × 2880 @ 60 Hz and 4096 × 2160 @ 240 Hz

Two USB 3.1 Gen 1 ports with SuperSpeed 5 Gbps transfer rates

Supports DisplayPort Dual-Mode technology (DP++)1

Supports MST (Multi-Stream Transport) 2

DisplayPort 1.4 compliant

HDCP compliant

Supports HDR 10+

Supports HD Audio3

Supports hot-plugging

Comprehensive Management and Switching Controls

One USB keyboard and mouse control four DisplayPort computers and share two USB peripherals

Computer selection via pushbuttons, remote port selector, hotkeys, mouse4, and RS-232 commands

Independent switching of KVM, USB, and Audio

Console keyboard/mouse emulation/bypass support

Power-on detection automatically switches to the next active computer

Firmware upgradabl – esupports performance optimization and compatibility improvements through firmware updates

Multilingual keyboard mapping – supports English, Japanese, French, and German keyboards5

Streamlined, Ready-to-Use Experience

Plug & play

All DisplayPort/USB cables and power adapter included for hassle-free installation – no extra purchases needed

Multiplatform support – Windows, Mac, and Linux

Note:

1. DP++ (DP Dual Mode) requires a DP++ adapter (powered DP++ adapter recommended). The graphics source must be DP++ compliant.

2. MST (Multi-Stream Transport) requires monitors capable of DisplayPort 1.4 daisy-chaining or the use of a powered DisplayPort MST hub. The PC source must be DisplayPort 1.4 compliant. A DisplayPort 1.1a or 1.2 display can be the last display in a DisplayPort 1.4 chain.

3. HD audio through HDMI cannot be switched independently.

4. For 3-button USB wheel mouse only. Mouse-port switching is supported only under mouse emulation mode.

5. PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with Mac computers.

Package Contents

1 x CS1944DPA 4-Port USB 3.0 8K DisplayPort Dual-Display KVMP™ Switch

8 x DisplayPort cables (1.5 m/5 ft)

4 x USB Type-A to Type-B cables (USB 3.0-A to USB 3.0-B; 1.8 m/6 ft)

4 x microphone cables (1.8 m/6 ft)

4 x speaker cables (1.8 m/6 ft)

1 x remote port selector

1 x power adapter

1 x user instructions
