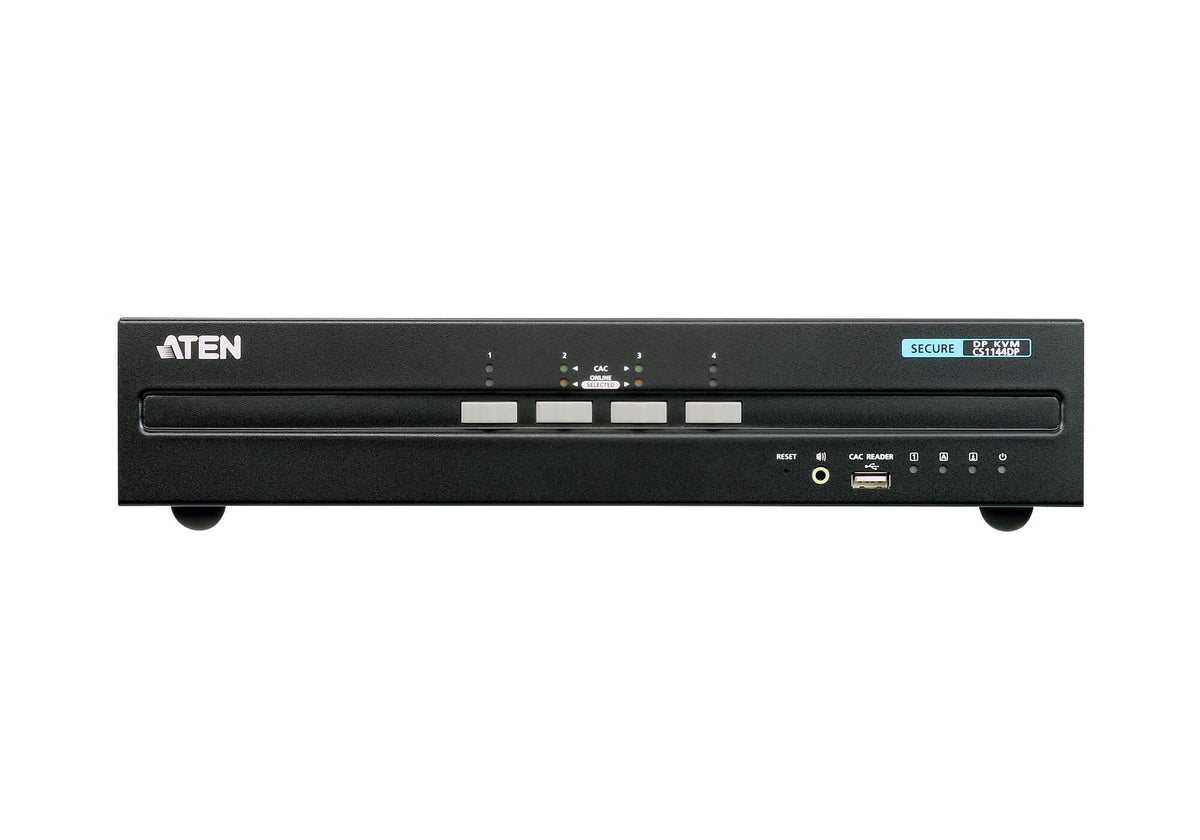

Aten 4-Port USB DisplayPort Dual Display Secure KVM Switch (PSS PP v3.0 Compliant), enable and disable CAC devices by port, with CAC black

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 4-Port
• enable and disable CAC devices by port
• with CAC black
• Product SKU: KVA-CS1144DP

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

Aten 4-Port USB DisplayPort Dual Display Secure KVM Switch (PSS PP v3.0 Compliant), enable and disable CAC devices by port, with CAC black/whitelist options

Computer Connections — 4

Port Selection — Pushbutton

Connectors

Console Ports — 2 x USB Type-A Female (Black)

1 x 6-pin Mini-DIN Female (Purple)

1 x 6-pin Mini-DIN Female (Green)

2 x HDMI Female (Black)

1 x Mini Stereo Jack Female (Green; front panel)

KVM Ports — 8 x USB Type-B Female (White)

8 x DisplayPort Female (Black)

4 x Mini Stereo Jack Female (Green)

Power — 1 x 3-prong AC Socket

USB CAC Port — 1 x USB Type-A Female (White; front panel)

Switches

Port Selection — 4 x Pushbuttons

Reset — 1 x Semi-recessed Pushbutton

Power — 1 x Rocker

LEDs

Power — 1 (Blue)

On Line/Selected (KVM Port) — 4 (Orange)

Online / Selected (CAC Port) — 4 (Green)

Video — 2 (Green)

Key Lock — 3 (Green)

Emulation

Keyboard / Mouse — USB

Video — Max. 3840 x 2160 @ 30 Hz (UHD)

Maximum Input Power Rating — 100–240V~; 50-60 Hz; 1A

Power Consumption — AC110V:8.2W:49BTU

AC220V:8W:48BTU

Environmental

Operating Temperature — 0-50°C

Storage Temperature — -20-60°C

Humidity — 0 - 80% RH, Non-condensing

Physical Properties

Housing — Metal

Weight — 2.18 kg ( 4.8 lb )

Dimensions (L x W x H) — 33.50 x 16.39 x 6.55 cm

(13.19 x 6.45 x 2.58 in.)
