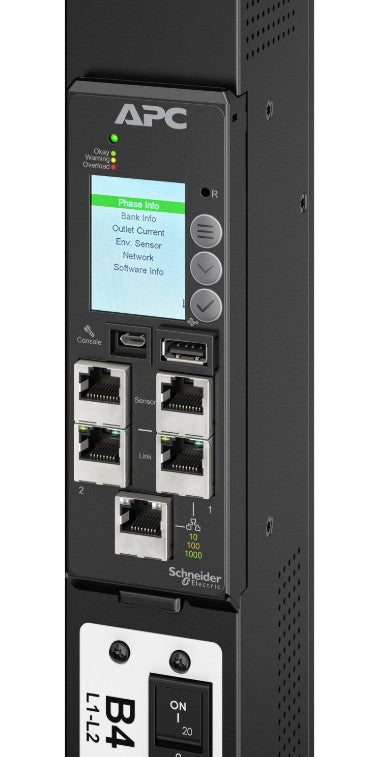

APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 22.1kW 400V 32A or 17.3kW 415V 30A, 530P6, 48 Outlet
APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 22.1kW 400V 32A or 17.3kW 415V 30A, 530P6, 48 Outlet
Product details
Compare the input supply, outlet types and mounting or placement requirements.
Quick comparison
- Power rating: 22.1kW
- Voltage: 400V
- Product SKU: UPA-APDU11350ME
Before you order
Confirm electrical ratings and the total connected load. Check plug, outlet and installation compatibility with your equipment.
Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.
Full product details
APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 22.1kW 400V 32A or 17.3kW 415V 30A, 530P6, 48 Outlet
APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. PDU level power metering provides power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 48 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is IEC-309 32 A 3P+N+PE and features 24 count C13/C15/C19/C21 combo outlets and 24 count C13/C15 outlets.
Colour
Black
Product or component type
PDU
PDU type
Metered
Cord length
3 m
Complementary
Input Voltage
415 V 3 phases
400 V 3 phases
Height
1780 mm
Width
56 mm
Output Voltage
240 V
Depth
75 mm
Net weight
8.4 kg
Mounting location
Side
Mounting preference
No preference
Input Plug Type
IEC 60309 30 A 3P + N + PE
Mounting mode
Rack-mounted
Rack units
0U
Mounting position
Vertical
Communication port protocol
1000BASE-T
10/100BASE-T
[In] rated current
24 A
permissible voltage
200…240 V
346…415 V
Input current limits
30 A
Load capacity
17300 VA
Network frequency
50/60 Hz
Outlet type and quantity
24 C13/C15/C19/C21
24C13/C15
Environment
Standards
UL 62368-1
CSA C22.2 No 62368-1
FCC part 15 Subpart B
CE
EN 62368-1
IP degree of protection
IP44
Ambient air temperature for operation
-5…60 °C
Relative humidity
5…95 %
Operating altitude
0...10000 ft
Ambient air temperature for storage
-25…65 °C
Storage Relative Humidity
5…95 %
Storage altitude
0…15240 m
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
198 cm
Package 1 Width
13.2 cm
Package 1 Length
26.2 cm
Package 1 Weight
11.4 kg
Contractual warranty
Warranty (in months)
36
