APC Galaxy VS UPS 20kW 400V for External Batteries, Start-up 5x8

Product details

Compare the listed power rating, installation format and connections with your equipment load.

Quick comparison

• Power rating: 20kW
• Voltage: 400V
• Product SKU: UPA-GVSUPS20KHS

Before you order

Confirm load sizing, input supply, outlet compatibility and required runtime. Runtime depends on connected load and battery configuration; check installation requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

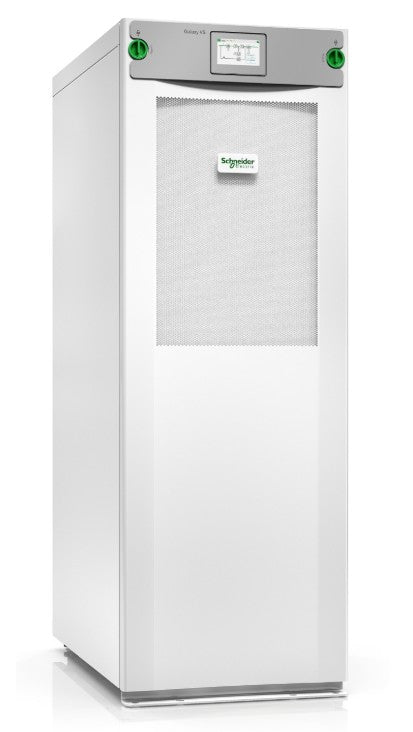

APC Galaxy VS UPS 20kW 400V for External Batteries, Start-up 5x8

Highly efficient, easy-to-deploy 20 kW, 400 V 3-phase UPS that brings best-in-class power protection to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Compact design, high-density technology and modular architecture keep total cost of ownership low and operational efficiency at the highest levels. Galaxy VS reduces your energy losses by up to 66% with the patented eConversion mode reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in normal operating mode. The UPS is EcoStruxure connected to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5x8 start-up service. See the battery runtime chart for details.

Main Input Voltage 400 V 3 phases

Other Input Voltage 380 V, 415 V

Main Output Voltage 400 V 3 phases

Other Output Voltage 380 V, 415 V

Rated power in W 20 kW

Rated power in VA 20 kVA

Output connector type- Hard wire 5-wire (3P + N + E) 1

Battery type- External battery system, Li-Ion (Lithium-Ion), VRLA

Provided equipment- Dust filter, Installation guide, Integrated network management, Power modules ship installed, Start-up service, Top and bottom cable entry.

Bypass voltage tolerance +/- 10 %

Max bypass input current 32 A

Redundant No

Ambient air temperature for operation 0…40 °C

Relative humidity 0…95 % non-condensing

Operating altitude 0...3281 ft

Ambient air temperature for storage -25…55 °C

Storage Relative Humidity 10…80 % non-condensing

Storage altitude 0.0000000000…15240.0000000000 m

Acoustic level 65 dBA

Heat dissipation 2187.8 Btu/h

IP degree of protection IP21

Compatible Service bypass panels-GVSBPAR10K30H, GVSBPSU20K60H

Compatible Spare parts- GVSOPT001, GVSOPT002

Compatible Accessories-AP9644, GVSBPAR40K50H

Compatible Batteries-LIBSESMG13IEC, LIBSESMG16IEC, GVEBC11, GVEBC7
