APC Easy UPS On-Line, 3kVA/2700W, Tower, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• 3kVA/2700W
• Tower
• 230V
• 6x IEC C13 + 1x IEC C19 outlets
• Product SKU: UPAPC-SRV3KI-E

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

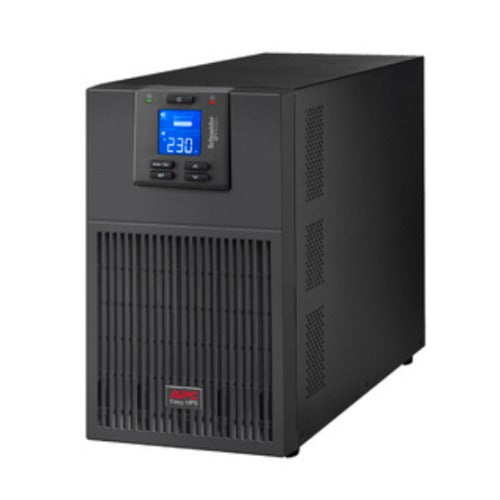

APC Easy UPS On-Line, 3kVA/2700W, Tower, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input and 6x IEC 320 C13, 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV205. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Main Input Voltage 230 V AC 1 phase

Input voltage 220 V, 240 V

Input Connection Type IEC 60320 C20

Input voltage limits 110...285 V 40% load, 180...285 V full load

Network frequency 40...70 Hz auto sensing

Output voltage 230 V AC 1 phase

Output voltage 220 V, 240 V

Rated power in W 2700 W

Rated power in VA 3000 VA

Output connection type 6 IEC 60320 C13, 1 IEC 60320 C19

Bypass type

Internal bypass (automatic and manual)

Crest factor 3 : 1

Harmonic distortion 3 %

Maximum configurable power in VA 3000 VA

Maximum configurable power in W 2700 W

UPS type On-Line

Wave type Sine wave

Efficiency 88 % (full load)

Output frequency 50/60 Hz +/- 3 Hz sync to mains

Additional information

Configurable for 220 : 230 or 240 nominal output voltage

Battery type

Lead-acid internal included

Control panel

Multifunction LCD status and control console

Free slots 1

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

UPS connectivity Serial port , USB port, Available expansion slot

Mounting preference No preference

Mounting mode Not rack-mountable

USB compatible Yes

Mounting position Vertical

Mounting mode Tower

Max runtime 3 min
