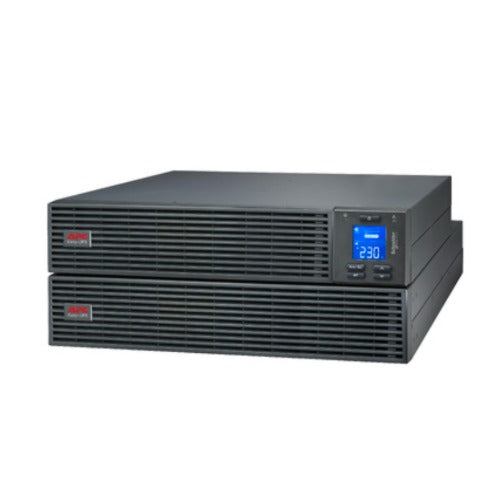

APC Easy UPS 2000VA/1800W Online UPS, 4U Rackmount, 230V/10A Input, 4x IEC C13 Outlets, Lead Acid Battery, W/ Battery Pack, W/ Rail Kit

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• 4U Rackmount
• 230V/10A Input
• 4x IEC C13 Outlets
• Lead Acid Battery
• Product SKU: UPAPC-SRV2KRILRK-E

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

APC Easy UPS On-Line, 2000VA/1800W, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/ rail kit

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 4x IEC 320 C13 outlets. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Run time for load 1600 W 22min 17s

Min-max: 160-1800 W

Max. Capacity Used 100 %

Main Input Voltage 230 V

Product or component type

Other Input Voltage 220 V 240 V

Main Output Voltage 230 V

Other Output Voltage 220 V 240 V

Rated power in W 1800 W

Rated power in VA 2000 VA

Input Connection Type IEC 60320 C14

Output connection type 4 IEC 60320 C13

Number of rack unit 4U

Number of cables 1

Provided equipment, 1 IEC 60320 C13 to Schuko power cable, 1 IEC 60320 C19 to C14 power cable, 1 USB cable, 1 RS-232 configuration cable, 2 rack mounting brackets, 2 rack mounting support rails, 1 external battery pack, 1 battery cable

Ambient air temperature for operation0…40 °C

Relative humidity 0…95 % non-condensing

Operating altitude 0...3000 m

Ambient air temperature for storage -20…50 °C

Storage Relative Humidity 0…95 % non-condensing

Storage altitude 0…15000 m

Acoustic level 50 dBA

Heat dissipation 745 Btu/h

IP degree of protection IP20

Mounting mode- Rack mountable

Replacement Battery -SRV72RLBP-9A

Compatible NMC- AP9544, SRVSMB001, VGL9901I

Compatible Mounting- SRVRK1
