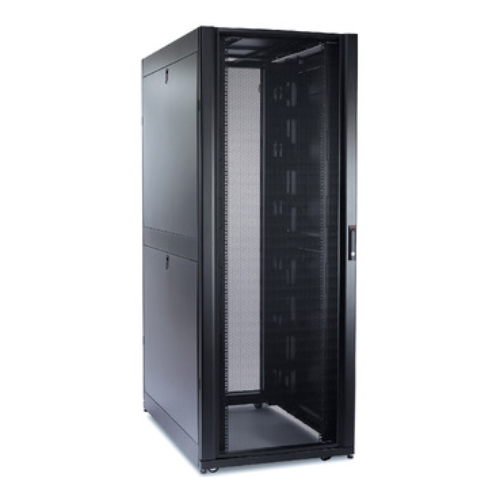

APC (AR3357) NETSHELTER SX 48U 750MM WIDE X 1200MM DEEP ENCLOSURE

Product details

Compare rack dimensions, mounting format and equipment fit before planning an installation.

Quick comparison

• Product: APC (AR3357) NETSHELTER SX 48U 750MM WIDE X 1200MM DEEP ENCLOSURE
• Product SKU: UPACAR3357

Before you order

Confirm rack height, width, depth, load rating and mounting compatibility. Check included hardware, site access and installation requirements.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

APC (AR3357) NETSHELTER SX 48U 750MM WIDE X 1200MM DEEP ENCLOSURE

Designed for high density environments with standard features for speed of deployment and installation. Wide rack design provides space for passing cabling from front-to-back and ensures plenty of clearance at the back for rack accessories and limits interference with IT device hot swap components. Very ideal for blade, converged, and hyperconverged devices. Deeper rack design provides enough rack mounting space for even the deepest devices and still plenty of room for vertically mounting accessories. 48U height allows for an additional 6U of rack mounting space maximizing u-space per rack footprint.

Main

Product or component type: Rack enclosure

Number of rack unit: 48U

Provided equipment:

Baying hardware

Key(s)

Leveling feet

Mounting hardware

Pre-installed casters

Side panels

Physical

Height225.8 cm

Width75 cm

Depth120 cm

Net weight185.45 kg

Colour Black

Mounting preference No preference

Mounting mode Not rack-mountable

Maximum mounting depth 104.8 cm

minimum mounting depth 26.19 cm

Rack width 19'

Marking

14 gauge EIA mounting rail

16 gauge front door

16 gauge post

16 gauge rear door

18 gauge roof

18 gauge side panels

Permanent permissible load

1020.6 kg dynamic

1701.0 kg static

Conformance

Standards

UL 2416

UL 60950-1

EIA-310E

Warranty

5 year repair or replace
