Antec ST20M + VPA550P, Mid Tower, mATX/ITX, 1x120mm Rear Fan, GPU ≤265mm, CPU ≤150mm, 550W PSU, Active PFC, 2x PCIe

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• Mid Tower
• mATX/ITX
• 1x120mm Rear Fan
• GPU ≤265mm
• Product SKU: CAA-ST20MVPA55AU

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

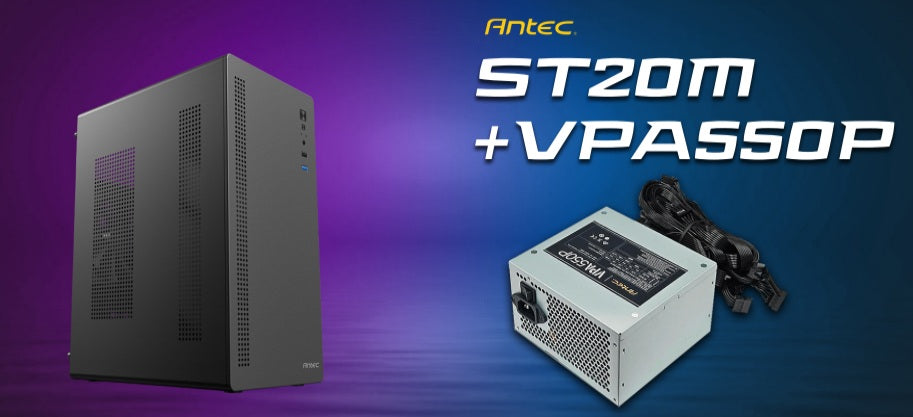

Antec ST20M + VPA550P

Pre-installed 550W power supply

MAIN SPEC

ST20M

Dimensions 275x 180 x 352mm (DWH)

Form Factor Mid Tower

Materials Steel

Motherboard Support Micro-ATX, ITX

Front Access & Controls Power, Reset, USB 2.0 x 1, USB3.0 x 1, Headphone/Mic Combo Jack

DRIVE BAYS

Expansion Slots 4

3.5' 1

2.5' 1

FAN SUPPORT

Rear 1 x 120mm

Included Fan(s) 1 x 120mm fan at the rear

CLEARANCES

Max GPU Length ≤265mm

Max CPU Cooler Height ≤150mm

Max PSU Length (Cableincluded)≤160mm

MISCELLANEOUS

Net Weight 2.01Kg

Gross Weight 2.48Kg

Warranty 1Year

UPC 0-761345-10288-9

VPA550P

Safe Model V3000A175EC-26

Type ATX 12V 2.3

Dimension 140(L) x 150(W) x 86 (H)

Modular Non-Modular

Input Voltage 200V-240V

Input Current 4A Max

Input Frequency Range 50Hz-60Hz

PFC Active PFC

Power Good Signal 100-500ms

Protection OVP, SCP, OPP, NLO

Output CApacity 550W

Operation Temperature 0-30°C

Regulatory CB/CE

Fan 120MM Silent Fan

Connector

1 x 240(20+4)pin MB

1 x 8(4+4)pin CPU

2 x 8(6+2)pin PCI-E

6 x SATA

2 x Molex
