Antec NE1200P AU, 1200W, 80 PLUS Platinum, ATX 3.1, PCIe 5.1 (12V-2x6), Full Modular, Active PFC, 120mm FDB Fan, 10Y Warranty

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• 1200W
• 80 PLUS Platinum
• ATX 3.1
• PCIe 5.1 (12V-2x6)
• Product SKU: PSA-NE1200P

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

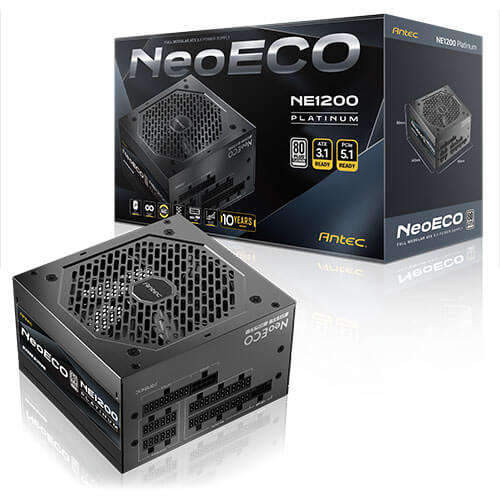

Antec NE1200P AU

Introducing the NeoECO Platinum ATX3.1 power supply, crafted to deliver exceptional performance and rock-solid stability for gamers and enthusiasts. Featuring next-generation ATX 3.1 and PCIe 5.1 support, high-quality Japanese capacitors, and 80 PLUS® Platinum efficiency, it ensures outstanding and consistent power delivery. The PhaseWave™ design provides smooth, reliable output, while the 120 mm FDB silent fan delivers efficient, quiet cooling. Its fully modular design allows for easy cable management, and the Zero RPM Manager intelligently controls fan operation, activating it only when needed to balance silent performance with optimal cooling. Backed by the CircuitShield™ suite of industrial-grade protections, the NeoECO Platinum ATX3.1 is a powerful, efficient, and dependable choice for modern PC builds.

SPECIFICATIONS

Model — NE1200 PLATINUM ATX3.1

Safe Model — X8000A589EU-25

Type — ATX 12V 3.1

Dimension — 140(L) * 150(W) * 86(H)

Modular — Full-Modular

Warranty — 10 years

Input Voltage — 100V-240V

Input Current — 15A-7.5A

Input Frequency Range — 50Hz-60Hz

PFC — Active PFC

Power Good Signal — 100-150ms

Protection — OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO

Output Capacity — 1200W

Operation Temperature — 0~40°C

Regulatory — cTUVus / TUV / CB / RCM / CE / FCC /

BSMI / 3C / UKCA / ICES

Fan — 120mm FDB Silent Fan

Certifications — 80 Plus Platinum

Connector

1 x 24(20+4)pin MB

1 x 16(12+4)pin PCIE 5.1 12V-2x6

2 x 8(4+4)pin CPU

3 x 8(6+2) Pin PCI-E

9 x SATA

3 x Molex

UPC

0-761345-20215-2 NE1200P AU

0-761345-20217-6 NE1200P EC

0-761345-20218-3 NE1200P GB

0-761345-20219-0 NE1200P JP

0-761345-20220-6 NE1200P US
