Antec C6 Curve AIR - White, ATX/mATX/ITX, steel/glass, 7 slots, 450mm GPU, 180mm CPU, 3 PWM fans, USB-C 10Gbps

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• ATX/mATX/ITX
• steel/glass
• 7 slots
• 450mm GPU
• Product SKU: CAA-C6-CURVE-AIR-WH

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

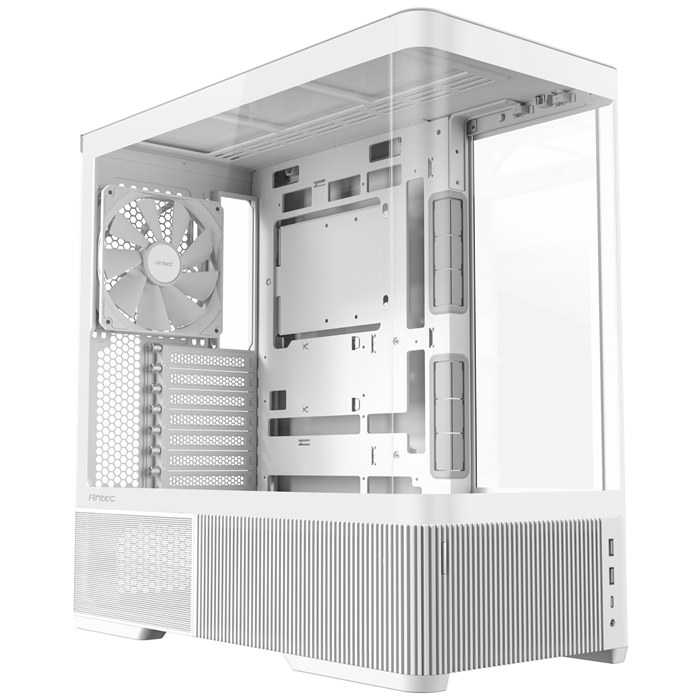

Antec C6 Curve AIR - White

SPECIFICATIONS

main spec

Dimensions — 480 x 235 x 470mm(DWH)

Form Factor — Mid Tower

Materials — Steel + Plastic + Glass

Mainboard Support — ATX, Micro-ATX, ITX

Front Access & Controls — Power, USB 3.0 x 2, Type-C 3.2 Gen 2 x 1(10Gbps), Headphone/Mic Combo Jack

Side Panel — 4mm Tempered Glass

Drive Bays

Expansion Slots — 7

3.5' — 1

2.5' — 1

Fan Support

Top — 3 x 120mm / 2 x 140mm

Power supply shroud — 2 x 120mm

Rear — 1 x 120mm / 1 x 140mm

Included Fan(s) — 2 x 120mm PWM reverse fans on the PSU shroud + 1 x 140mm PWM fan at the rear

Radiator Support

Top — 120 / 140 / 240 / 280 / 360mm

Rear — 120mm

Clearance

Max GPU Length — ≤ 450mm

Max CPU Cooler Height — ≤ 180mm

Max PSU Length — Standard mounting (excluding cables) ≤ 150mm (For modular PSUs, the PSU chamber fan bracket must be removed.)

Side mounting (excluding cables) ≤ 160mm

Miscellaneous

Dust Filter — Front / Bottom

Net Weight — 9.12Kg

Gross Weight — 10.79Kg

Warranty — 2 Years

UPC# 0-761345-10276-6 C6 Curve Air
