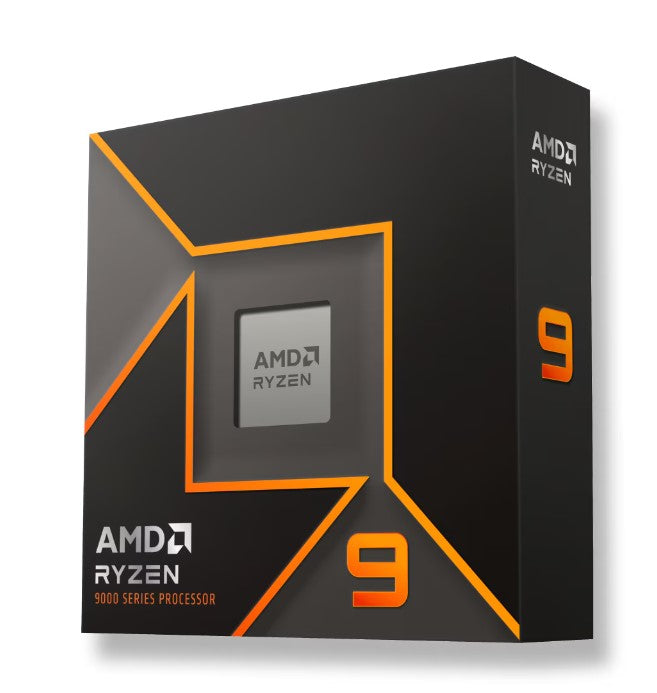

AMD Ryzen 9 9900X 12Cores/24Threads, 120w, Max Boost Clock 5.6 GHz, PCIE 5.0, 64MB Cache, Radeon™ Graphics, 2200 MHz Frequency

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• 120w
• Max Boost Clock 5.6 GHz
• PCIE 5.0
• 64MB Cache
• Product SKU: CPAR5-9900X

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

AMD Ryzen 9 9900X 12Cores/24Threads, 120w, Max Boost Clock 5.6 GHz, PCIE 5.0, 64MB Cache, Radeon™ Graphics, 2200 MHz Frequency

General Specifications

Form Factor: Desktops , Boxed Processor

Market Segment: Enthusiast Desktop

AMD PRO Technologies: No

Former Codename: Granite Ridge AM5

Architecture: Zen 5

# of CPU Cores: 12

Multithreading (SMT): Yes

# of Threads: 24

Max. Boost Clock: Up to 5.6 GHz

Base Clock: 4.4 GHz

L1 Cache: 768 KB

L2 Cache: 12 MB

L3 Cache: 64 MB

Default TDP: 120W

Processor Technology for CPU Cores: TSMC 4nm FinFET

Processor Technology for I/O Die: TSMC 6nm FinFET

Package Die Count: 3

CPU Socket: AM5

Supporting Chipsets; A620 , X670E , X670 , B650E , B650 , X870E , X870

CPU Boost Technology: Precision Boost 2

Instruction Set: x86-64

Supported Extensions:

AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB): Not Included

Recommended Cooler: Liquid cooler recommended for optimal performance

*OS Support:

Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps) Ports: 4

Native USB 2.0 (480Mbps) Ports: 1

PCI Express® Version: PCIe® 5.0

Native PCIe® Lanes (Total/Usable): 28 , 24

Additional Usable PCIe Lanes from Motherboard

X870E — 8x Gen4

X870 — 4x Gen4

X670E — 12x Gen4

X670 — 12x Gen4

B650E — 8x Gen4

B650 — 8x Gen4

NVMe Support: Boot , RAID0 , RAID1 , RAID5 , RAID10

System Memory Type: DDR5

Memory Channels: 2

Max. Memory: 192 GB

System Memory Subtype: UDIMM

Max Memory Speed

2x1R — DDR5-5600

2x2R — DDR5-5600

4x1R — DDR5-3600

4x2R — DDR5-3600

Graphics Model: AMD Radeon™ Graphics

Graphics Core Count: 2

Graphics Frequency: 2200 MHz

USB Type-C® DisplayPort™ Alternate Mode: Yes

Product ID Boxed: 100-100000662WOF
